51 12 157 Replacing rear bumper trim
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Remove Rear Bumper Trim .

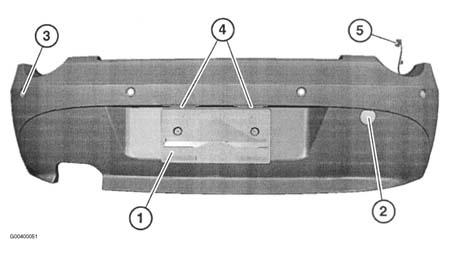

Remove License Plate Holder (1). Remove cover cap (2) for tow lug. Remove licence place lights (4). See 63 26 000 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT LICENCE PLATE LIGHT . On M Roadster, remove trim grill. Remove side marker lights on left/right. See 63 14 015 REMOVING AND INSTALLING/REPLACING REAR LEFT OR REAR RIGHT SIDE MARKER LIGHTS .
