51 16... Replacing finisher on left instrument panel trim
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 341
Necessary preliminary tasks:
- Remove left fresh air grille. See 64 22 135 REMOVING AND INSTALLING / REPLACING LEFT FRESH AIR GRILLE. .

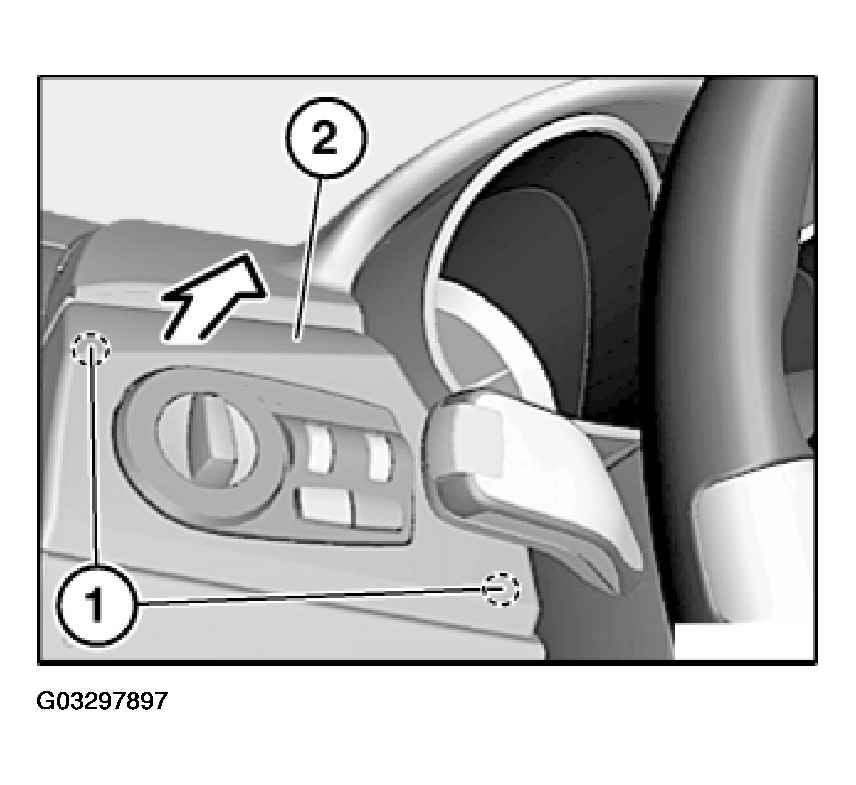

Lever out finisher on left instrument panel trim (2) with special tool 00 9 341 at mounting points (1) and remove.
Installation:
Always fit finisher for left instrument panel trim (2) with new retainers.
