51 16.. Overview of instrument panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

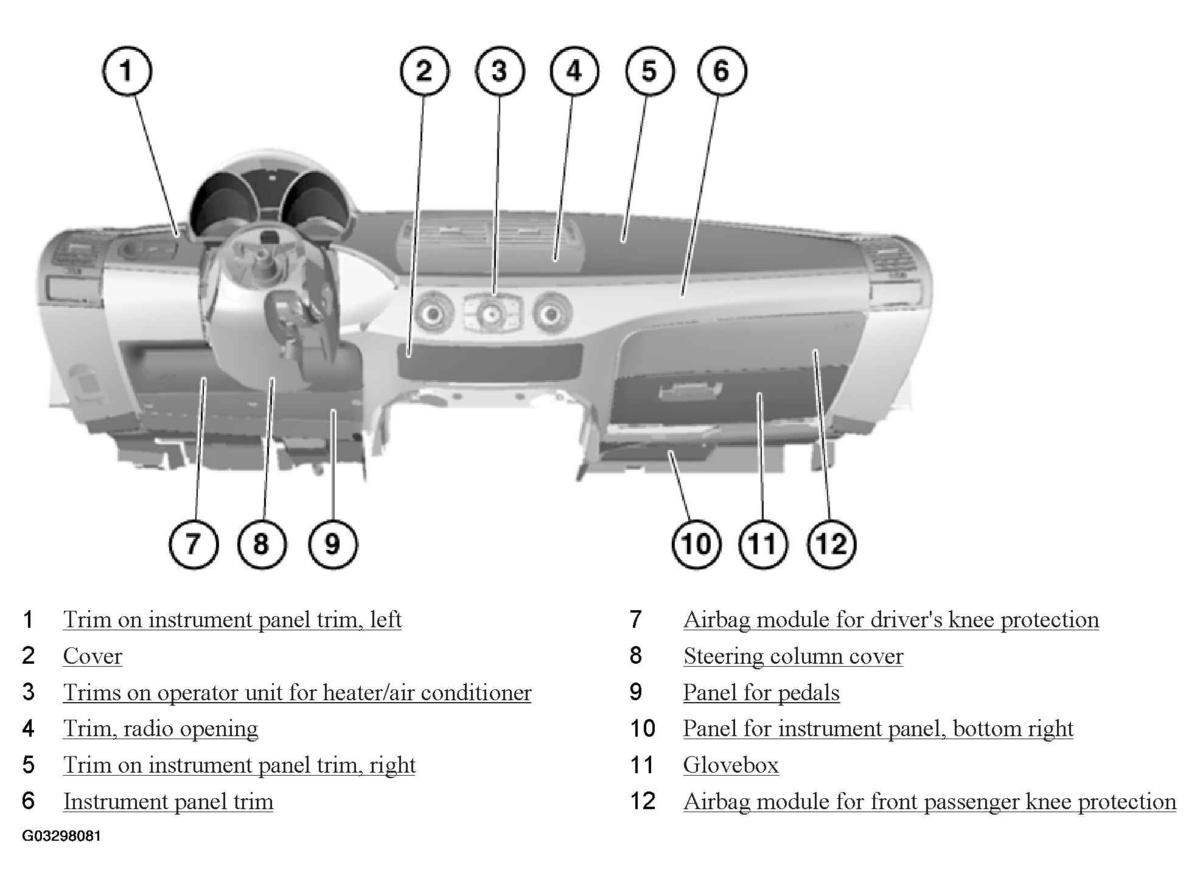

Fig 1: Overview Of Instrument Panel
G03298081Courtesy of BMW OF NORTH AMERICA, INC.
