51 41... Replacing speaker cover on left or right door trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

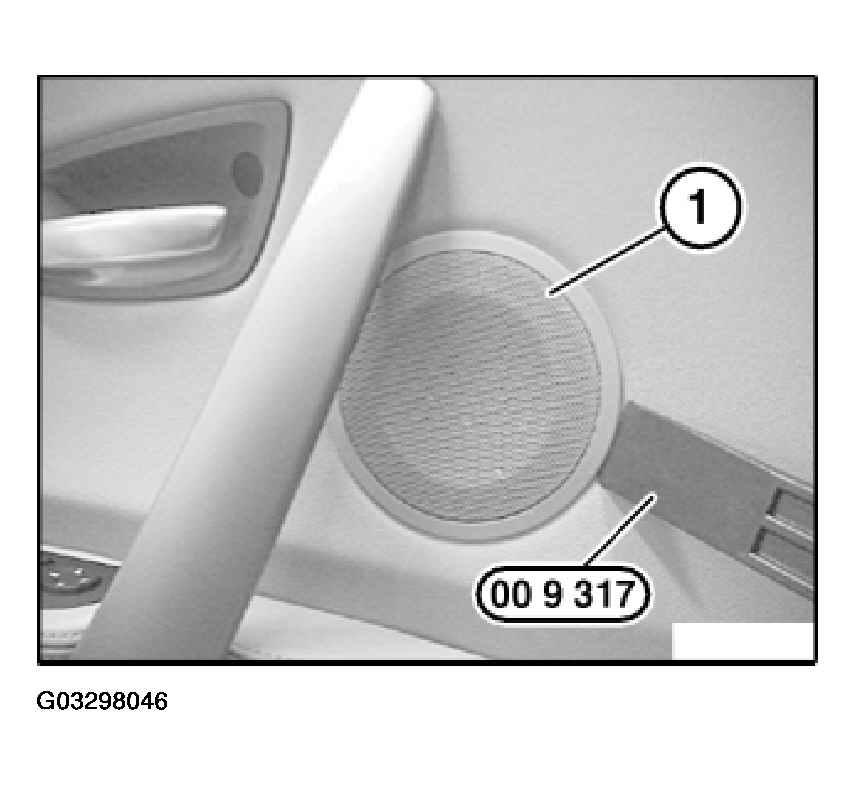

Carefully lever out speaker cover (1) with special tool 00 9 317 (trim panel wedge) and remove.

Fig 1: Removing Speaker Cover With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

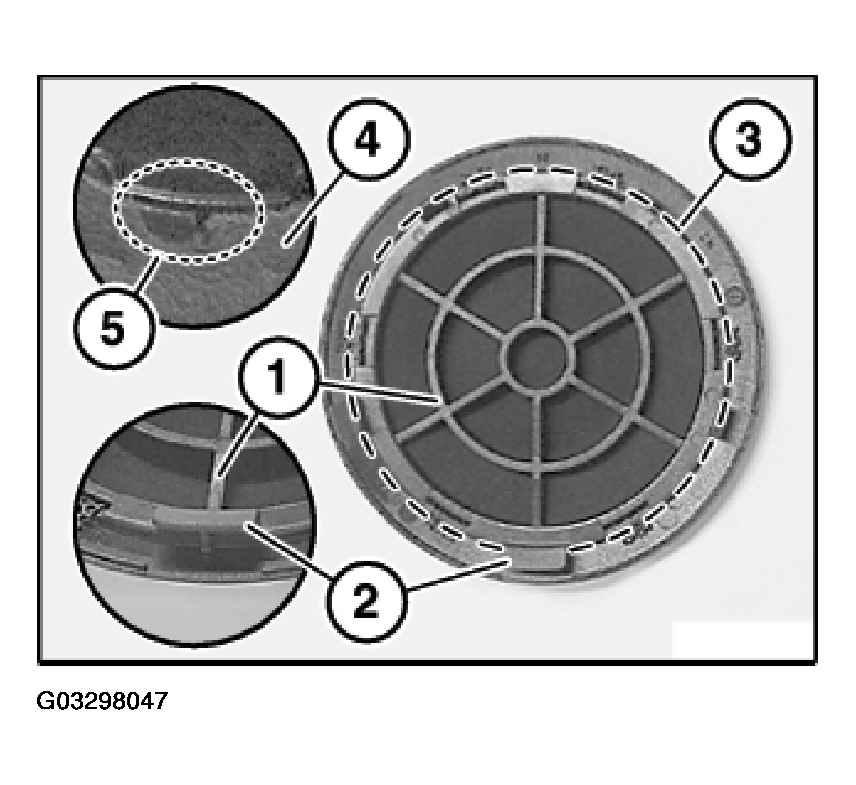

Following parts of speaker cover (1) must not be damaged or missing:

Guide (2)

Catches along line (3).

Insert guide (2) of speaker cover (1) correctly into opening (5) in door trim panel (4) and

carefully snap speaker cover (1) into place around edge.

Fig 2: Snapping Speaker Cover Into Place

Courtesy of BMW OF NORTH AMERICA, INC.
