51 31 021 Removing and installing/replacing rubber frame for windshield

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Rubber frame has an aluminum section inlay.
Carefully wind out rubber frame in a turning motion (windshield breakage).

Raise cowl panel cover (1) slightly.

Pull out rubber frame (2) from left bottom to right bottom.

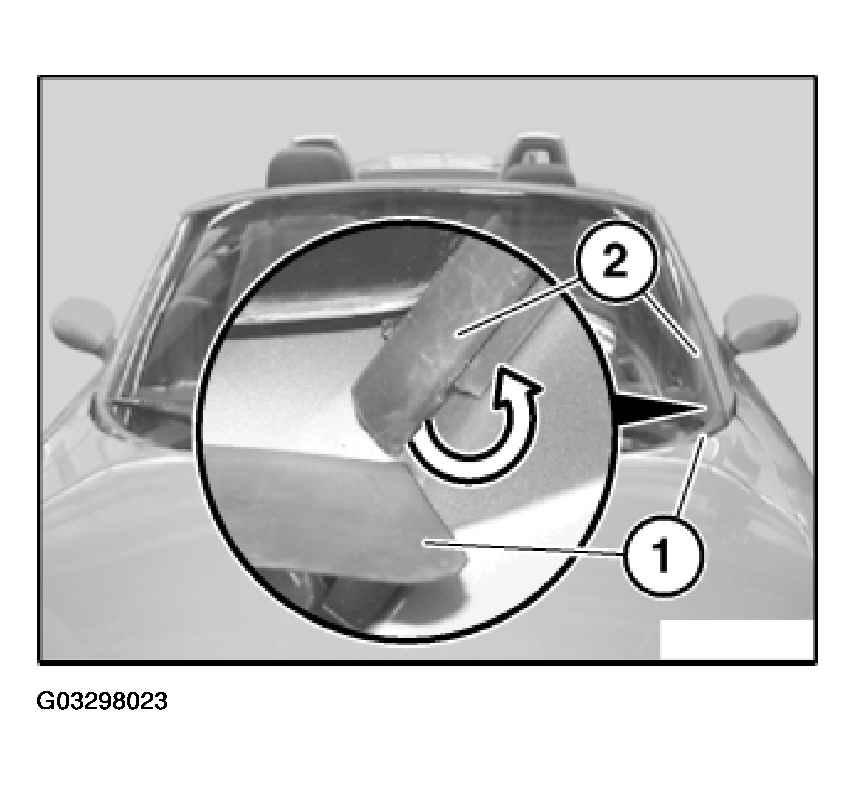

Fig 1: Raising Cowl Panel Cover & Pulling Out Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Tear-off lip (3) can be stuck on adhesive.
When rubber frame (1) is removed, tear-off lip (3) can tear off and remain in vehicle.

Installation:

Clean cutout.

If necessary, there is no tear-off lip (3) in area (A).

Pay attention to center marking on rubber frame and windshield.

Replacement of rubber frame without windshield removal:

Detach tear-off lip (3) from rubber frame (1).

If adhesive leaks over tear-off lip (3), this area must be cut out partially.

To facilitate installation, coat rubber frame (1) and body cutout with water.

Replacement of rubber frame with removed or new windshield:

Fit rubber frame (1) with tear-off lip (3).

Aluminum strip (2)

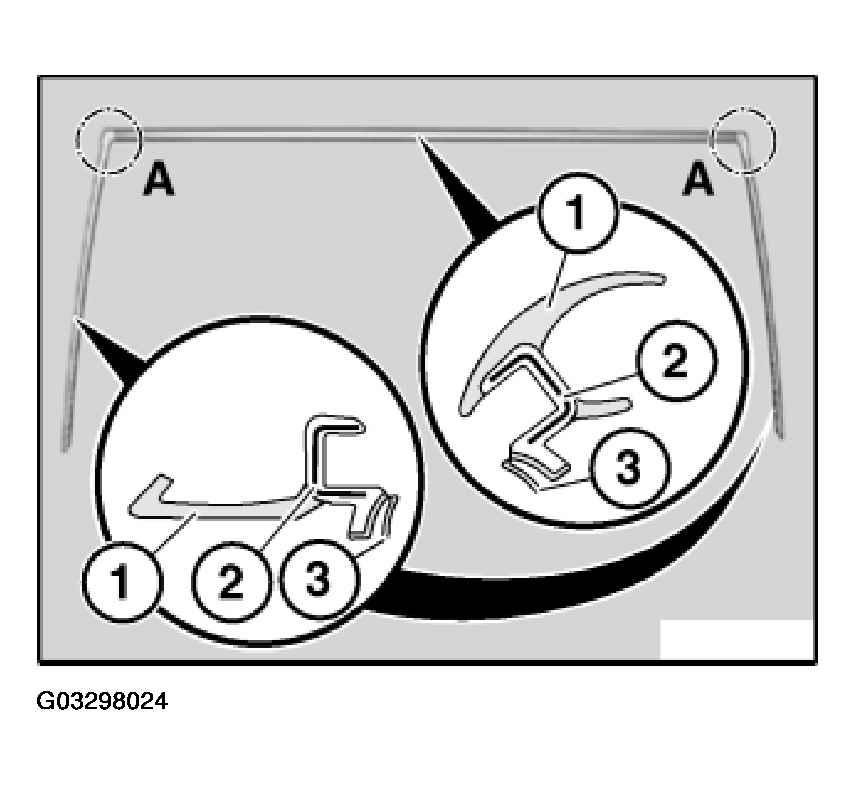

Fig 2: Detaching Tear-Off Lip From Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.
