51 14 110 Removing and installing/replacing rear model emblem
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The Instructions For Number/Letter Combination Cementing serve as the basis for these repair instructions and must be followed without fail.

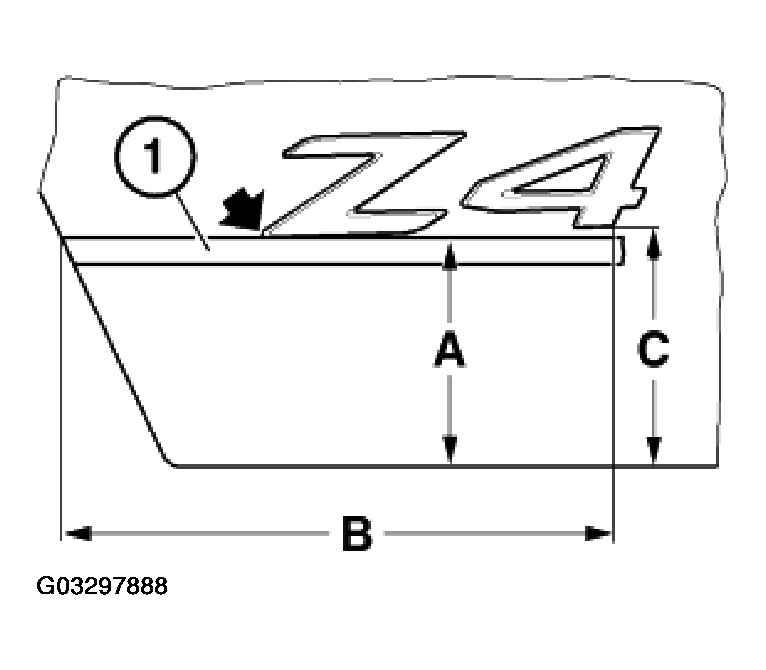

Stick on top edge of adhesive tape (1) parallel to bottom edge of rear lid at distance "A".
Mark out distance "B" on top edge of adhesive tape.
Remove liner (protective strip for adhesive surface).
Position corner of number "4" at distance "C" and position letter "Z" with marked point on adhesive tape (1).
Dimensions:
A= 72 mm
B= 200 mm
C= 74 mm
