17 00 009 Checking cooling system for leaks (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

17 0 101
17 0 105
17 0 106

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

NOTE: Illustrations feature the E85.

Checking pressure drop in cooling system:

Open cap on coolant expansion tank. Fit special tools 17 0 101 / 17 0 105.

Build up gauge pressure of 1.5 bar, wait approx. 2 minutes.

Cooling system is impervious to leaks if pressure drop is max. 0.1 bar.

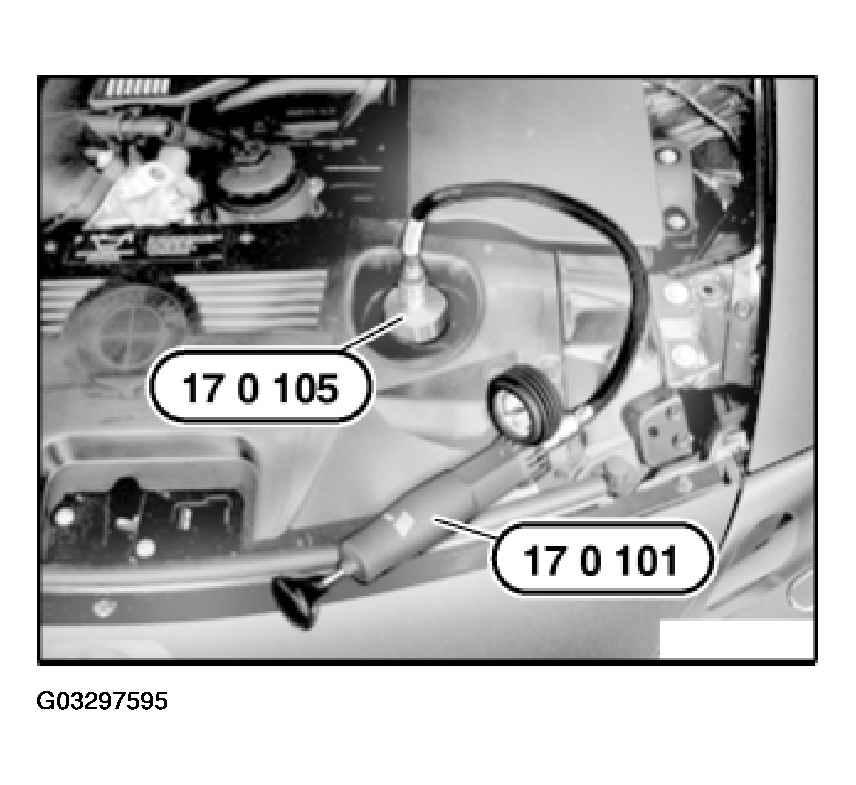

Fig 1: Checking Cooling System Pressure Drop

Courtesy of BMW OF NORTH AMERICA, INC.

Checking pressure relief valve in cap:

Screw cap (1) onto special tool 17 0 106.

Build up pressure with special tool (hand pump) 17 0 101; observe pressure gauge to ascertain when opening pressure is achieved.

Compare opening pressure of pressure relief valve. See COOLING SYSTEM - TECHNICAL DATA .

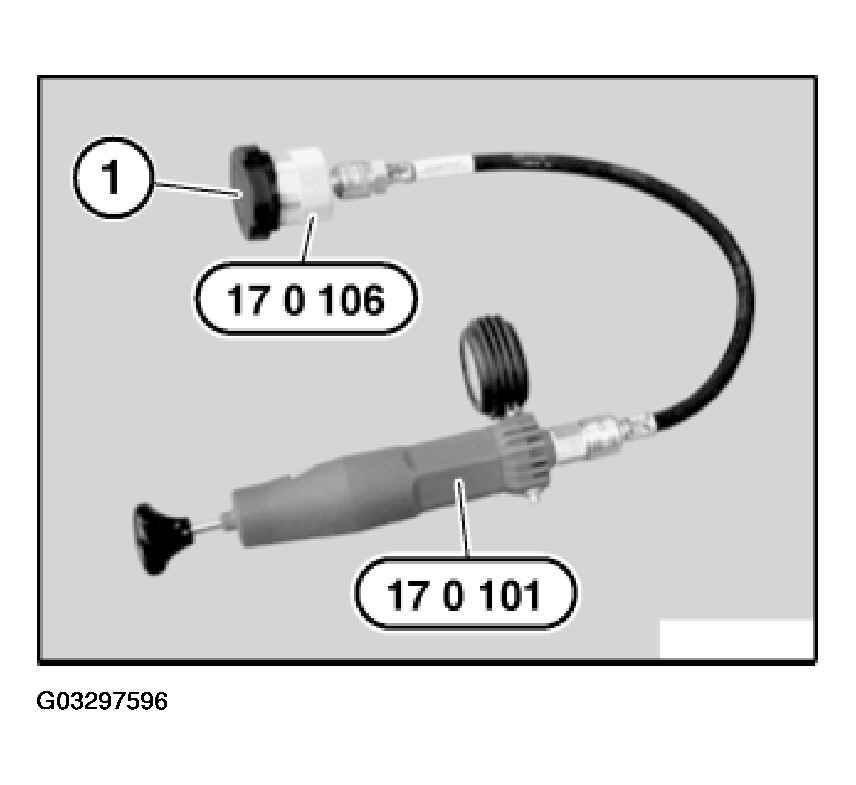

Fig 2: Installing Cap Onto Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
