13 54 030 Removing and installing/sealing throttle assembly (M54)

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition
Disconnect battery negative lead from battery and lay to one side
Follow 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
If fitted (E85): remove sound generator . See 13 74 001 Removing And Installing/Replacing Sound Generator (M54)
Remove air intake hose . See 13 54 250 Replacing Intake Hose (Between Air-Mass Flow Sensor And Connecting Piece) (M54) or 13 54 251 Replacing Intake Hose (Between Connecting Piece And Throttle Assembly) (M54) .

Release screws (1) of cable duct mounting.

Place cable channel to one side.

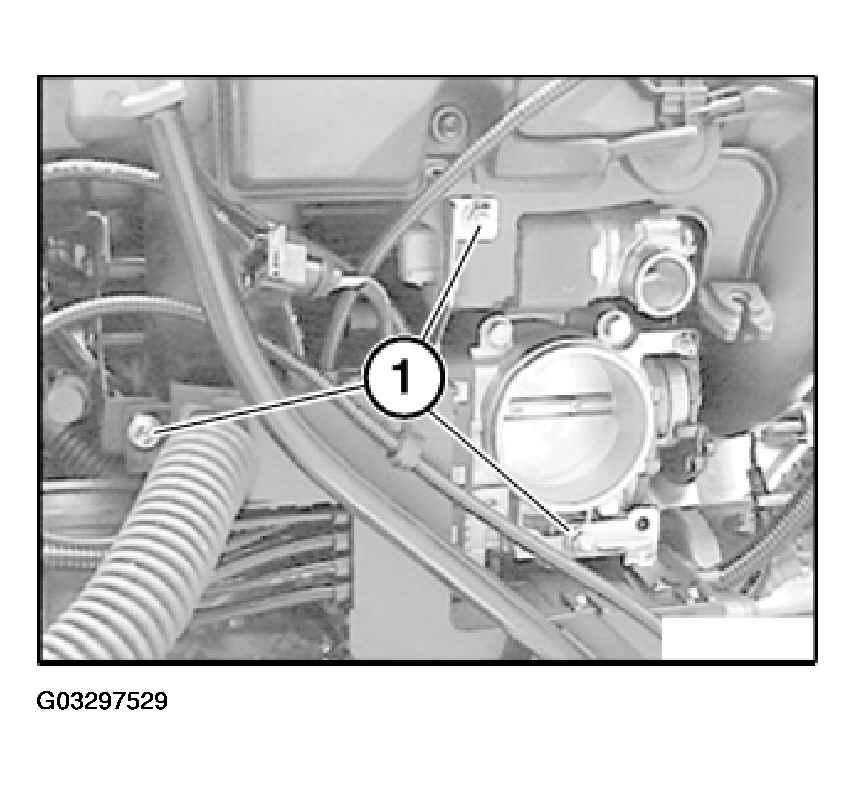

Fig 1: Releasing Cable Duct Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and detach from throttle assembly (3).

Release screws (2) and remove throttle assembly (3).

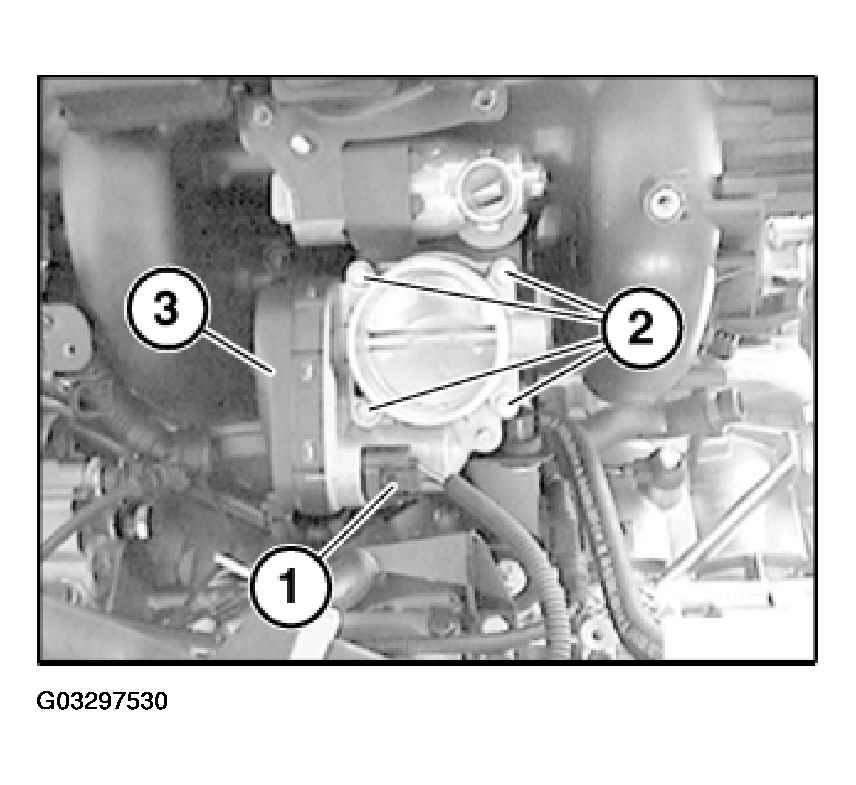

Fig 2: Removing Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring (1) on throttle assembly (2).

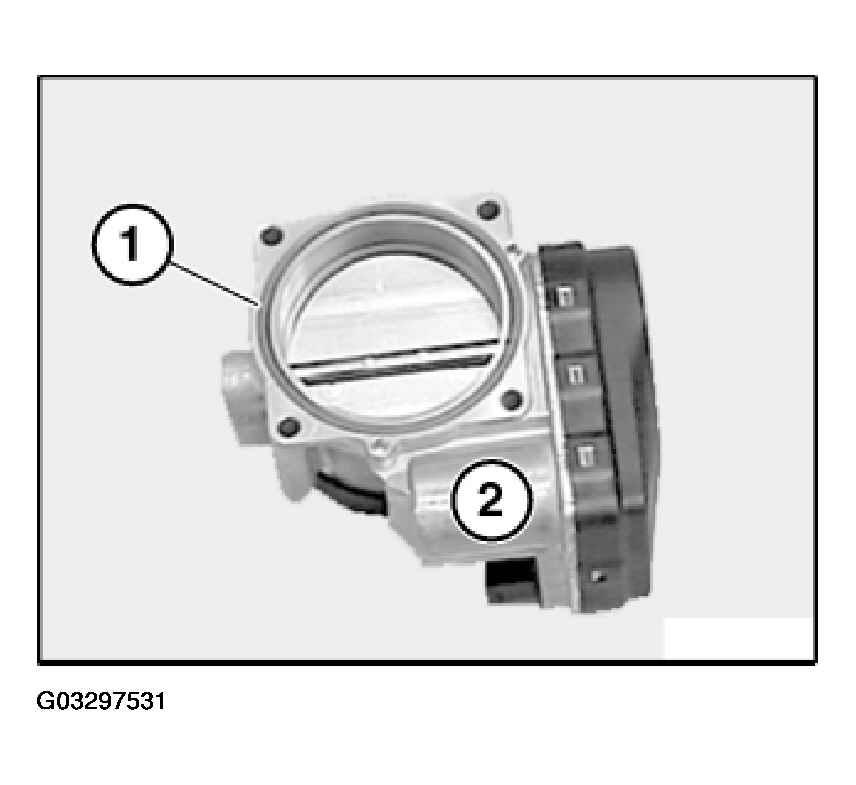

Fig 3: Replacing Throttle Assembly Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.
