13 72 001 Replacing air cleaner element (M54)

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

E85 only:

Open clips (1).

Open retainers (2) on air-mass flow sensor.

Lift top section (3) of intake filter housing.

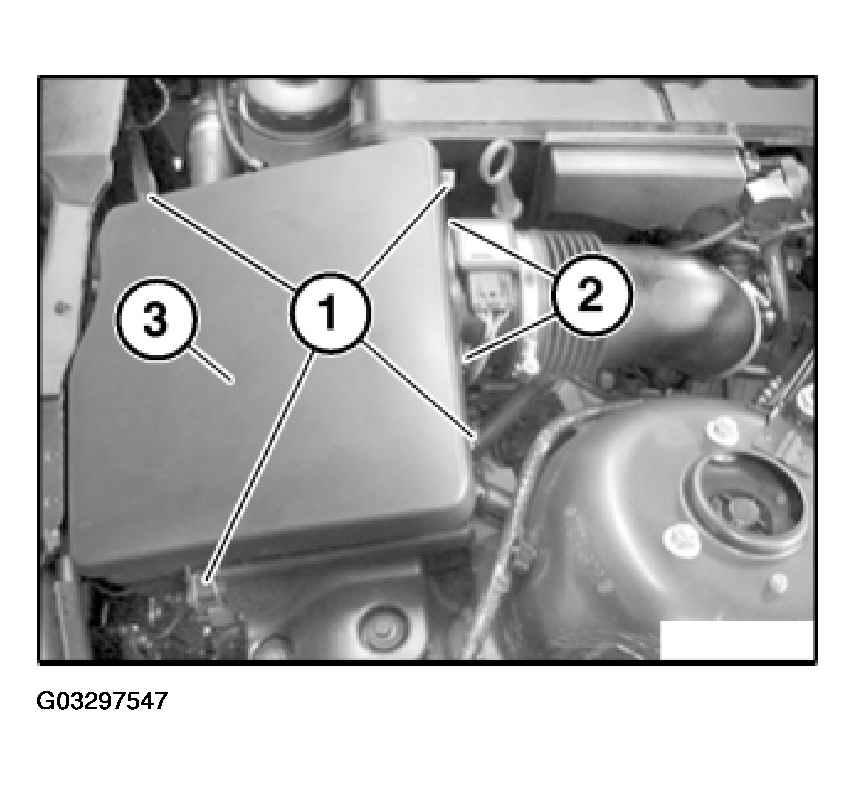

Fig 1: Removing Intake Filter Housing Top Section (E85)

Courtesy of BMW OF NORTH AMERICA, INC.

E53, E46 and E85:

Remove air cleaner element.

Installation:

Clean top and bottom sections of intake filter housing from inside.

Install new air cleaner element.

Check seal between air-mass flow sensor and air cleaner top section for damage, replace if necessary.

Coat seal with antiseize agent to facilitate joining of air cleaner and throttle body.

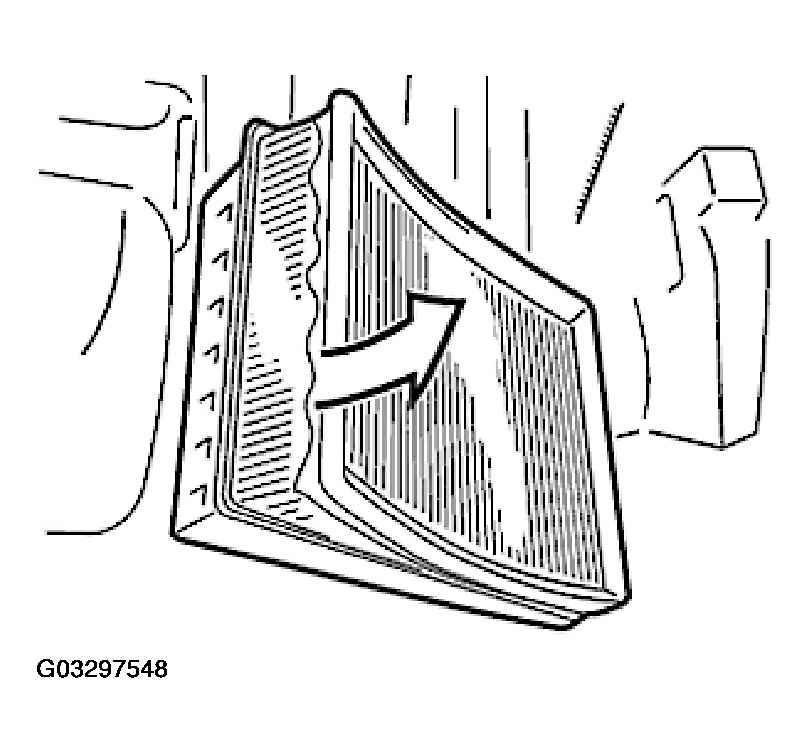

Fig 2: Removing Air Cleaner Element

Courtesy of BMW OF NORTH AMERICA, INC.
