12 61 285 Replacing oil level sensor
WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition
- Unfasten oil filter cap to enable engine oil in filter to flow back into the oil sump
- Remove reinforcement plate . See 51 71 374 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE .
- Drain off engine oil

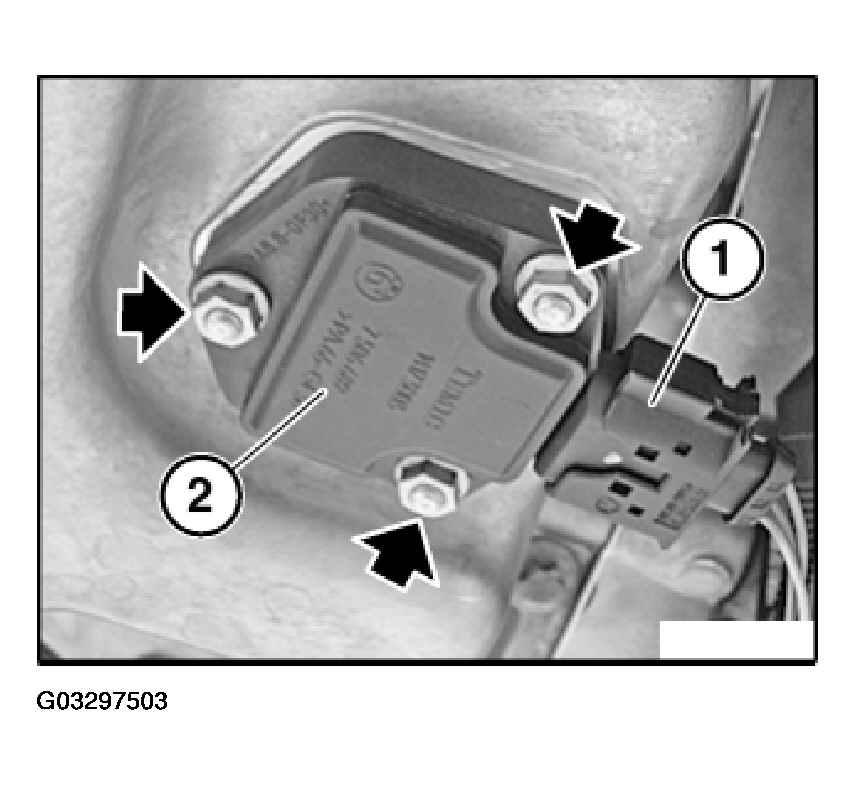

Unlock plug (1) and remove.
Unscrew nuts.
Remove oil level sensor (2).
Installation:
Clean sealing face on oil sump.
Replace seal on oil level sensor.
Tightening torque, see 12 61 2AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Installation:
Top up engine oil.
Tighten down oil filter cap.
Tightening torque, see 11 42 2AZ in ENGINE - TIGHTENING TORQUES .
