12 31 009 Checking alternator and regulator switch

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Test requirements:

Correct connections on charged battery
Correct connections on alternator and starter motor
Good ground connection between engine and body
Tightened drive belt

Connect DIS Tester.

Measurement
Checking alternator

If charge indicator lamp is permanently lit:

Remove voltage regulator and check carbon brushes, replace if necessary.

Replace alternator regulator switch .

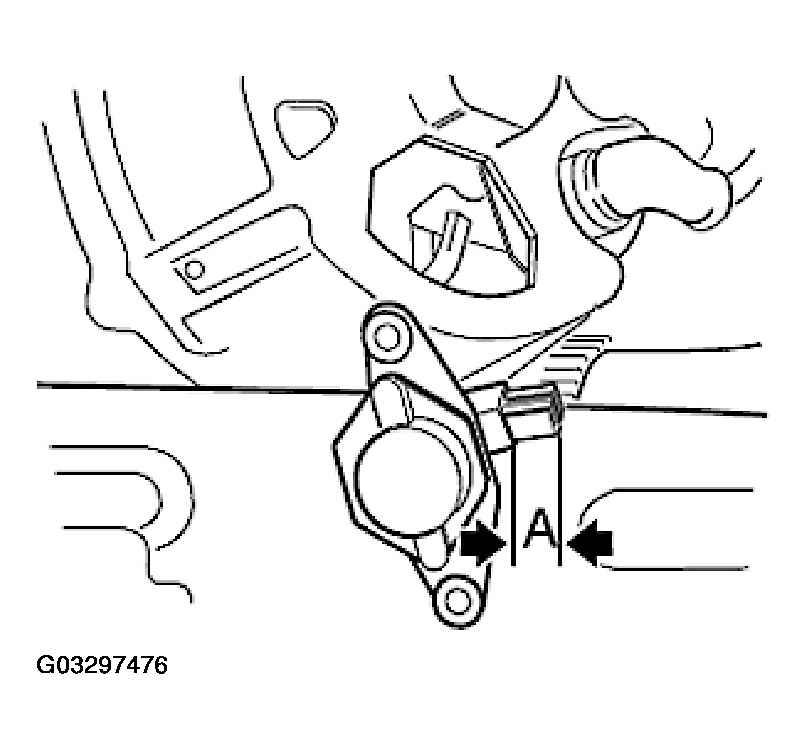

NOTE: Minimum length of carbon brushes "A" = 5 mm.

Fig 1: Identifying Minimum Carbon Brush Length

Courtesy of BMW OF NORTH AMERICA, INC.

If charge indicator lamp goes out while engine is running:

Check control voltage.

Regulator switch must be replaced if control voltage is not achieved.

Replace alternator regulator switch .

From E46/E39 with multifunction regulator.

Recognizable by plug connection on regulator.

Connect DIS Tester.

Function selection
Complete vehicle
Drive
Voltage and current regulation
Voltage and current generation
Work through test modules

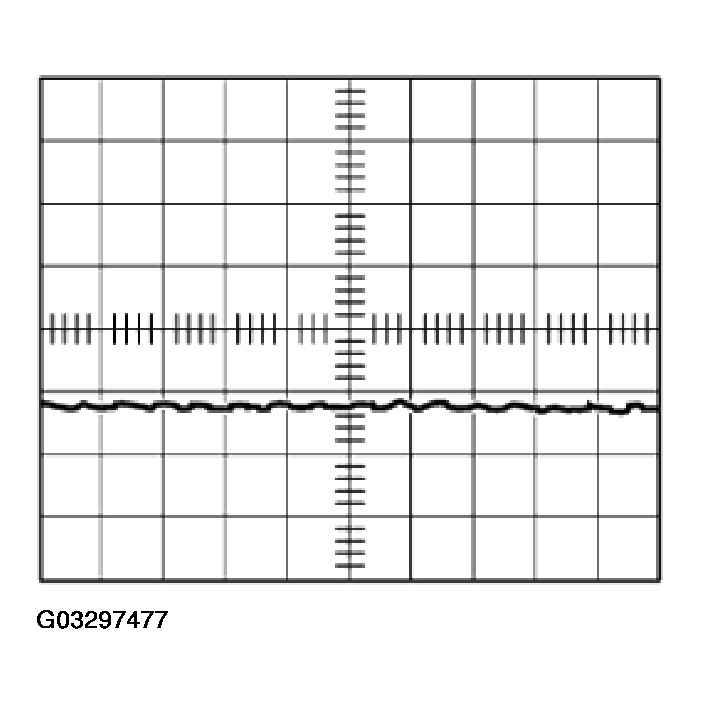

Oscillogram for a fault-free alternator:

Fig 2: Fault-Free Alternator Oscillogram

Courtesy of BMW OF NORTH AMERICA, INC.

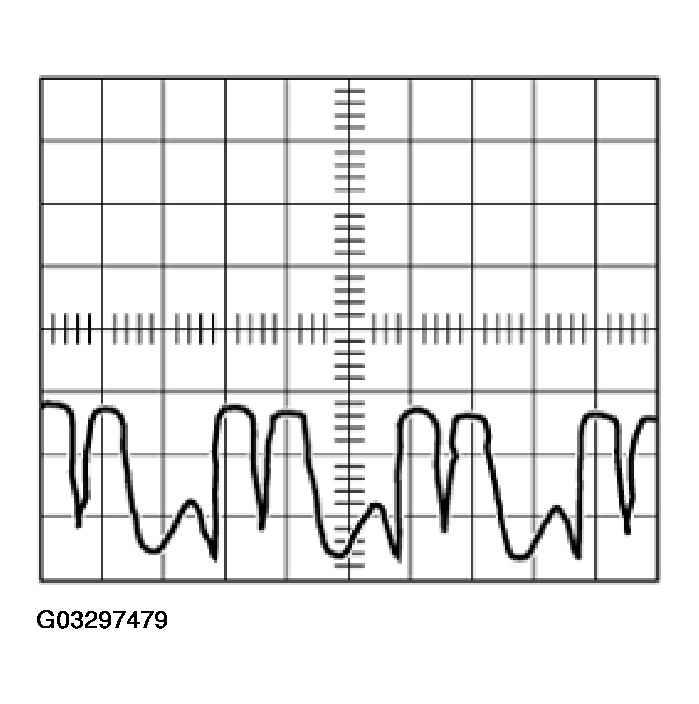

Oscillogram for a faulty alternator:

One phase interrupted.

Repair/exchange alternator.

Fig 3: Faulty Alternator Oscillogram

Courtesy of BMW OF NORTH AMERICA, INC.

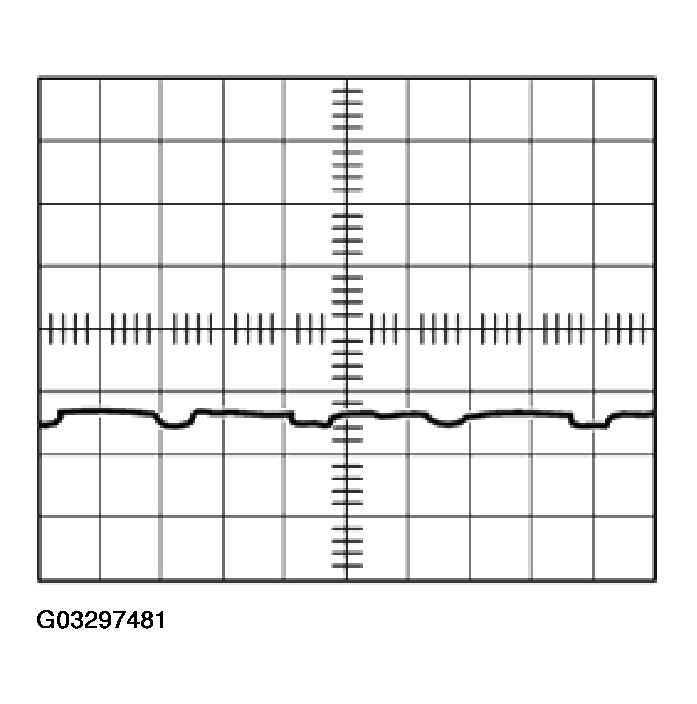

Interturn fault.

Repair/exchange alternator.

Fig 4: Alternator Oscillogram - Interturn Fault

Courtesy of BMW OF NORTH AMERICA, INC.

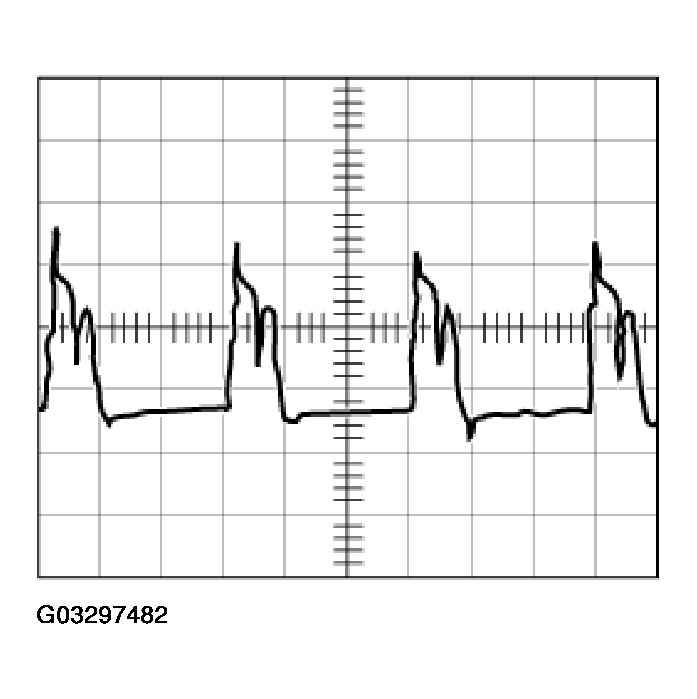

Open circuit in negative diode.

Repair/exchange alternator.

Fig 5: Alternator Oscillogram - Open Circuit In Negative Diode

Courtesy of BMW OF NORTH AMERICA, INC.

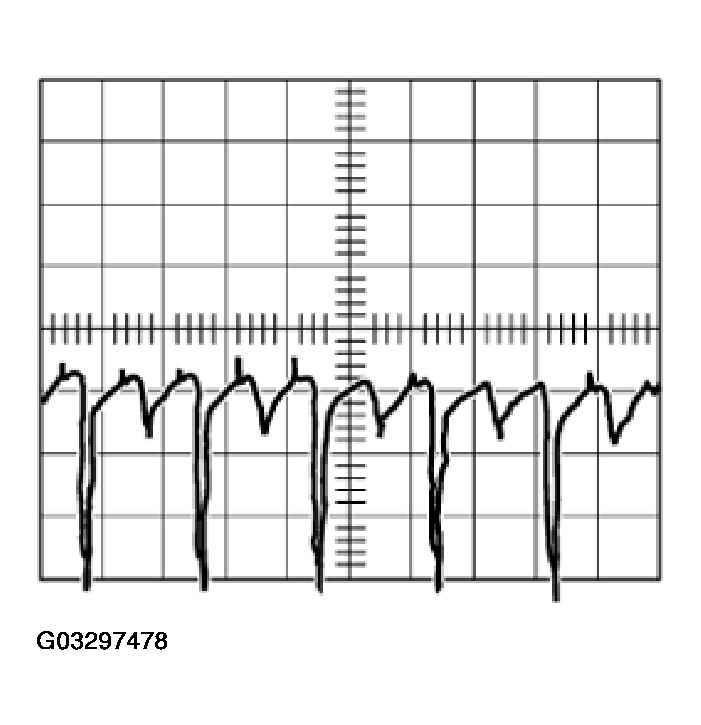

Short circuit in positive diode.

Repair/exchange alternator.

Fig 6: Alternator Oscillogram - Short Circuit In Positive Diode

Courtesy of BMW OF NORTH AMERICA, INC.

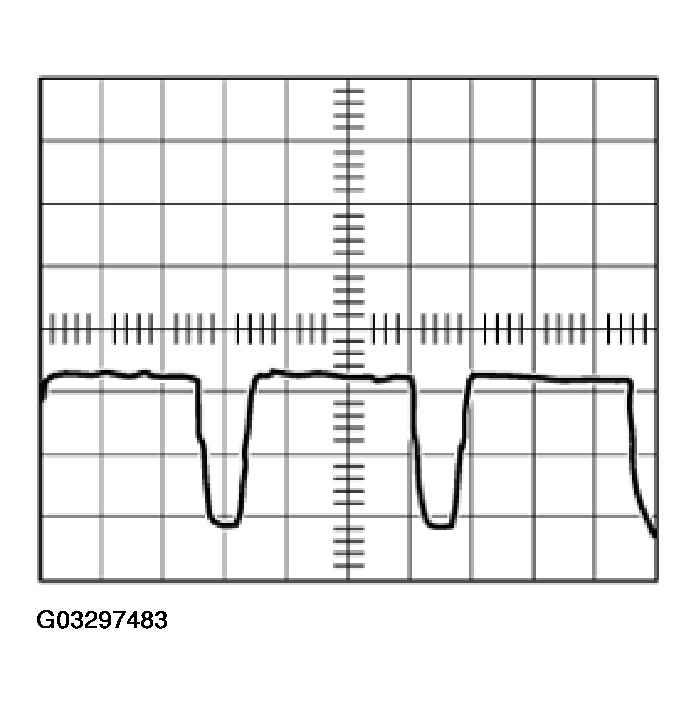

Open circuit in positive diode.

Repair/exchange alternator.

Fig 7: Alternator Oscillogram - Open Circuit In Positive Diode

Courtesy of BMW OF NORTH AMERICA, INC.

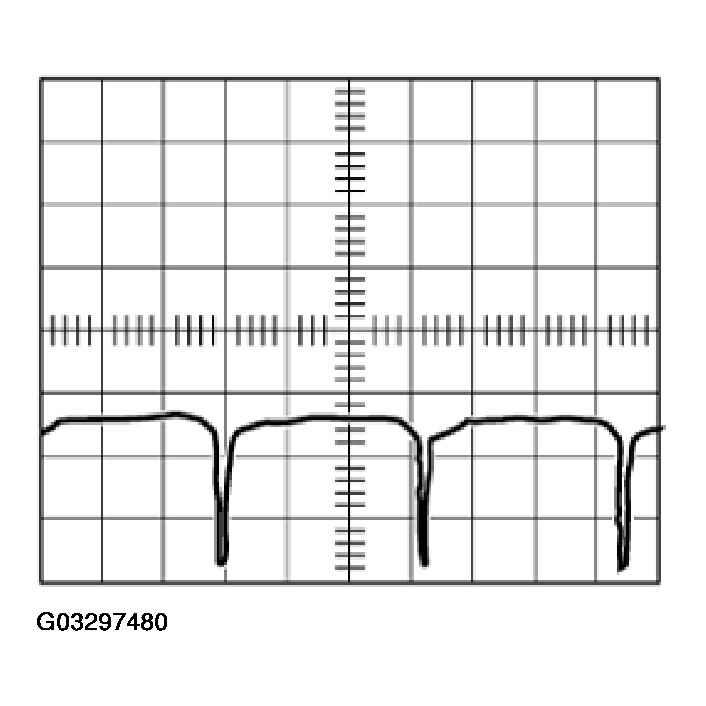

Open circuit in exciter diode.

Repair/exchange alternator.

Fig 8: Alternator Oscillogram - Open Circuit In Exciter Diode

Courtesy of BMW OF NORTH AMERICA, INC.
