11 34 560 Replacing all valve stem seals (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 1 200
11 1 480
11 1 960

(cylinder head removed)

Preliminary tasks are described in Disassembling and assembling cylinder head .

Remove all valve springs . See 11 34 715 Replacing All Valve Springs (M52 / S52 / M52TU / M54 / M56) .

Remove valve stem seal with special tool 11 1 480.

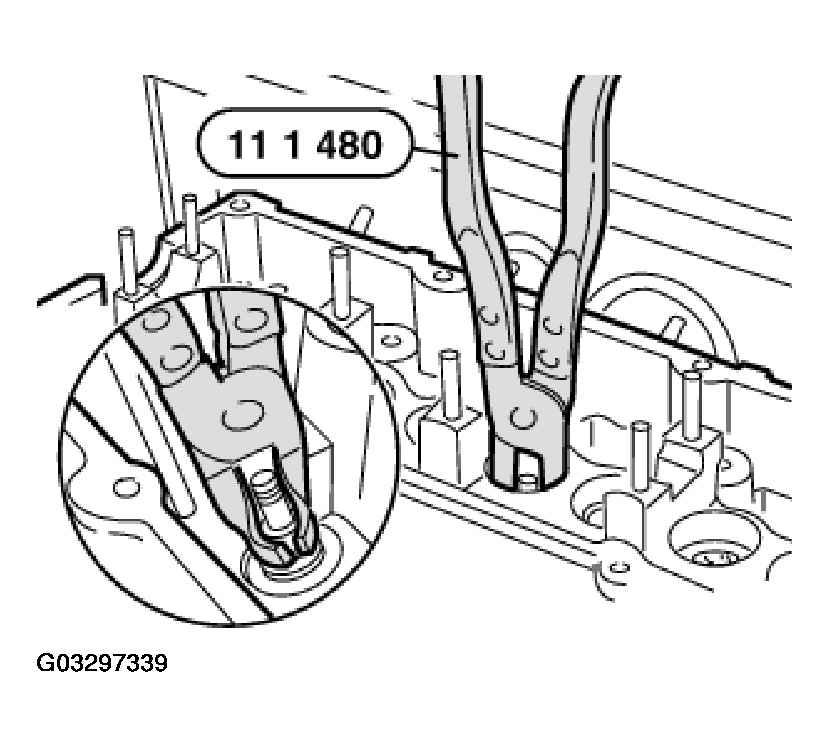

Fig 1: Removing Valve Stem Seal With Special Tool 11 1 480

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem with oil and insert valve. Fit special tool 11 1 960.

Coat new valve stem seal (1) with oil and install.

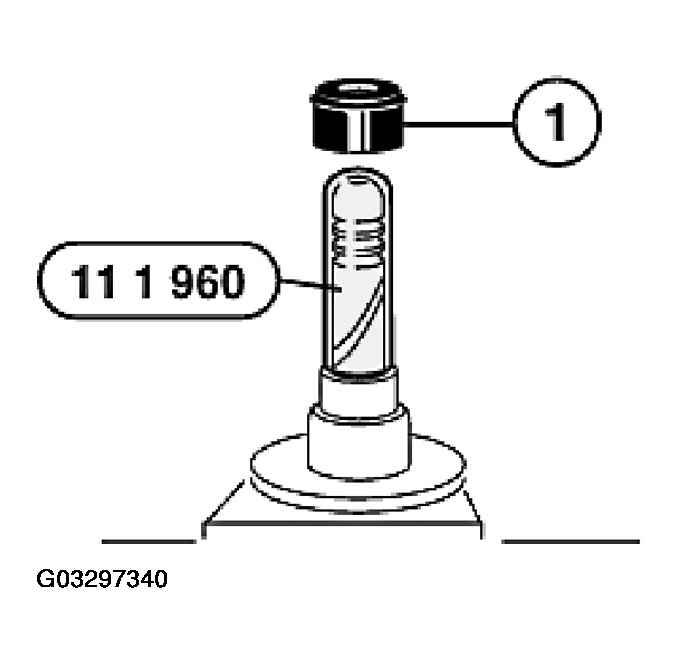

Fig 2: Coating New Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Press valve stem seal firmly home by hand with special tool 11 1 200.

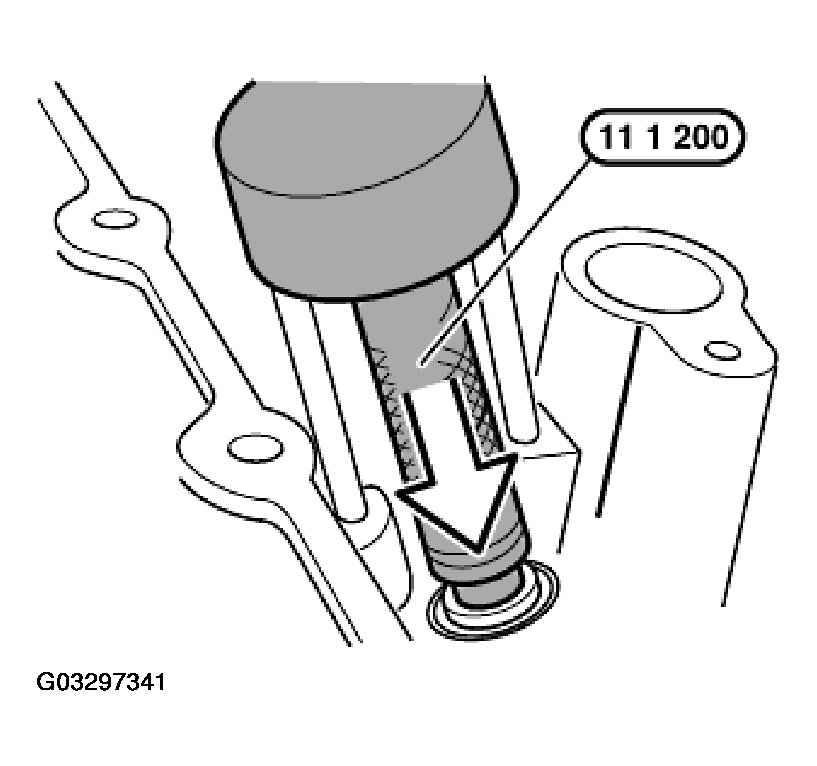

Fig 3: Pressing Valve Stem Seal With Special Tool 11 1 200

Courtesy of BMW OF NORTH AMERICA, INC.
