11 14 110 Removing and installing lower timing case cover (M52 / S52 / M52TU / M54): Notes
WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Remove VANOS adjustment unit . See 11 36 010 Removing And Installing Or Replacing Double VANOS Adjustment Unit (M52TU / M54 / M56) .
Remove coolant thermostat . See Coolant Thermostat .
Remove alternator drive belt and drive belt tensioner.

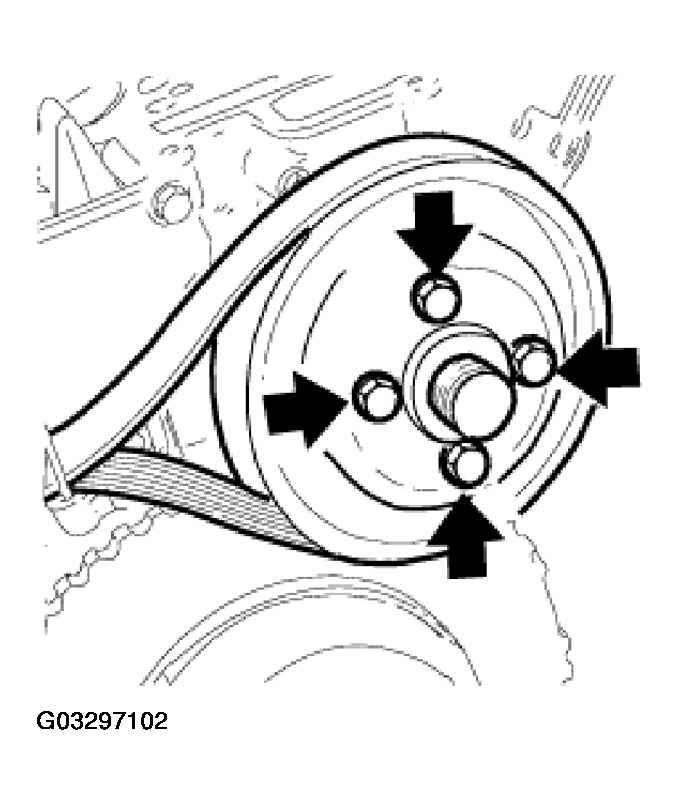

Brace pulley for water pump with drive belt and unfasten screws.
