11 22 500 Removing and installing or replacing flywheel (M52 / S52 / M52TU / M54 / S54)

WARNING: This page is about a different car, the 2005 BMW Z4, 2004 BMW Z4, and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 2 170

(clutch removed)

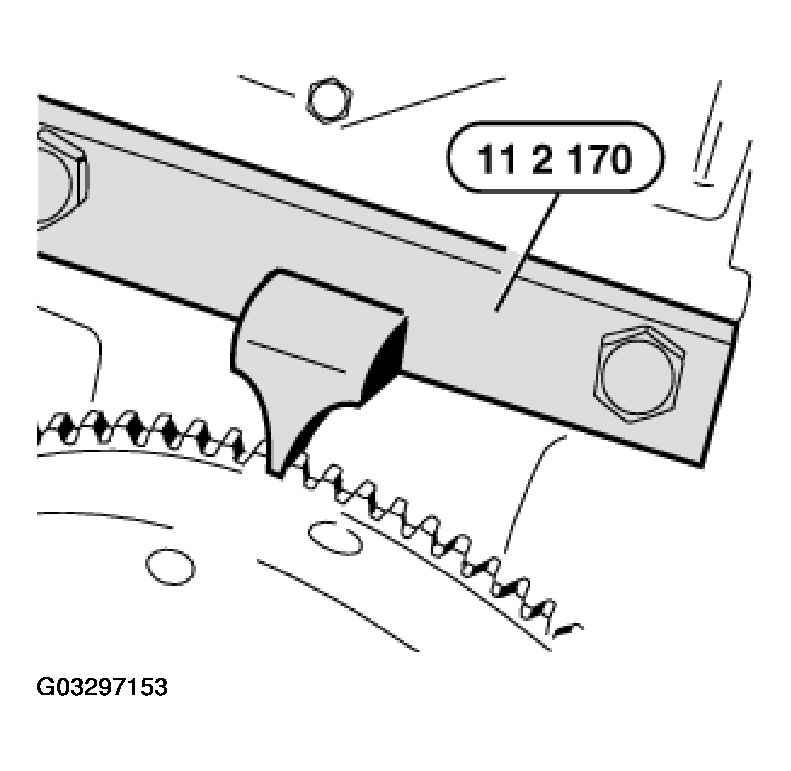

Lock flywheel with special tool 11 2 170.

Fig 1: Locking Flywheel With Special Tool

G03297153

Courtesy of BMW OF NORTH AMERICA, INC.

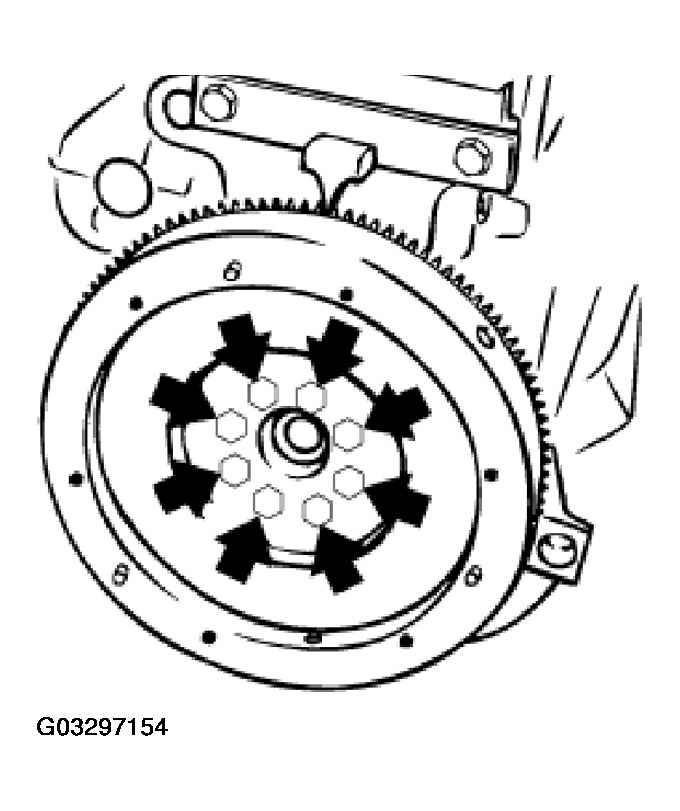

Unfasten screws and remove flywheel.

Fig 2: Removing Flywheel

G03297154

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

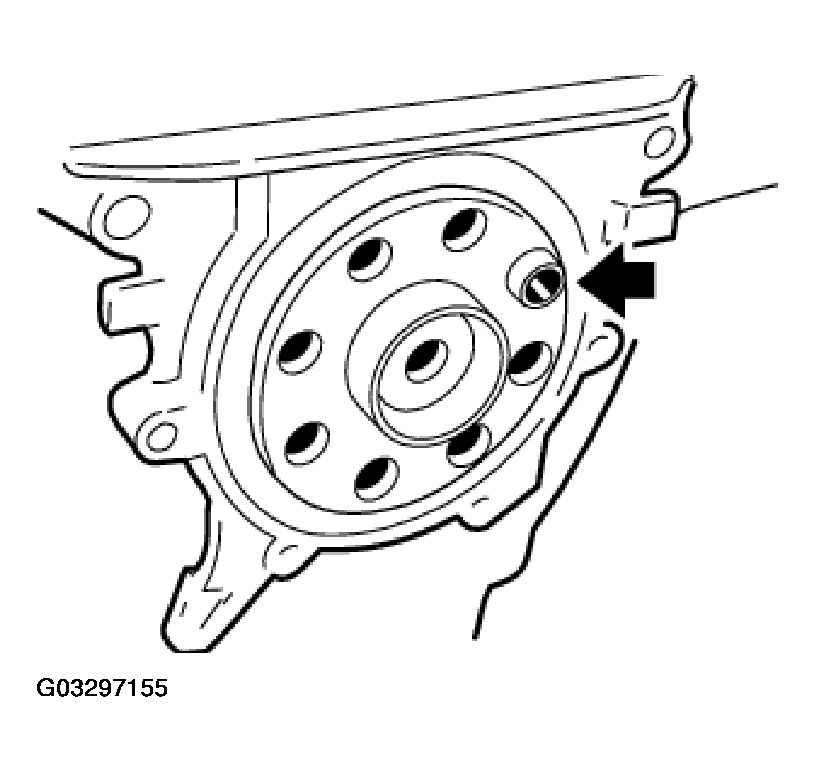

Check dowel sleeve for damage and correct installation position.

Fig 3: Checking Dowel Sleeve

G03297155

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

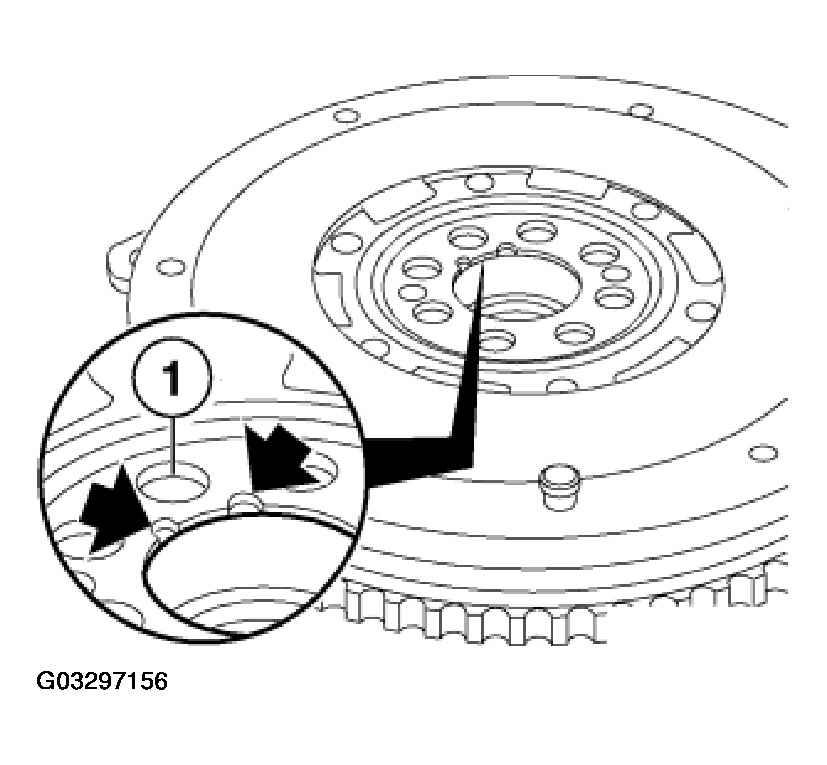

Position of dowel sleeve (1) in dual-mass flywheel is identified by two notches next to associated bolt hole.

Fig 4: Positioning Of Dowel Sleeve In Dual-Mass Flywheel

G03297156

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

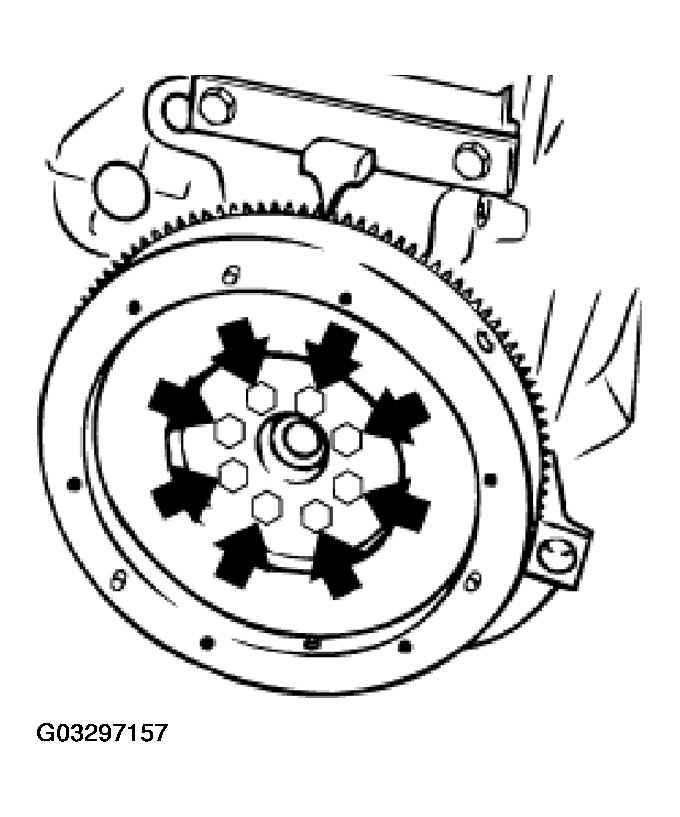

Clean thread and install new micro-encapsulated screws.

Tightening torque, see 11 22 1AZ in ENGINE - TIGHTENING TORQUES .

Fig 5: Installing New Micro-Encapsulated Screws

G03297157

Courtesy of BMW OF NORTH AMERICA, INC.
