31 3 350 Spring holder
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
SPRING HOLDER
| In conjunction with: | 31 3 340 and 31 3 360 |
| Note: | For locating coil springs during tensioning. No. 31 3 350 reserved for consecutive sub-number spring tensioner31 3 340. |
| Series: | E31, E36, E36/7, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53 |
| Storage location: | Single |
| SI number: | 1 11 99 (438) |
| Order number: | 31 3 350 Spring holder |

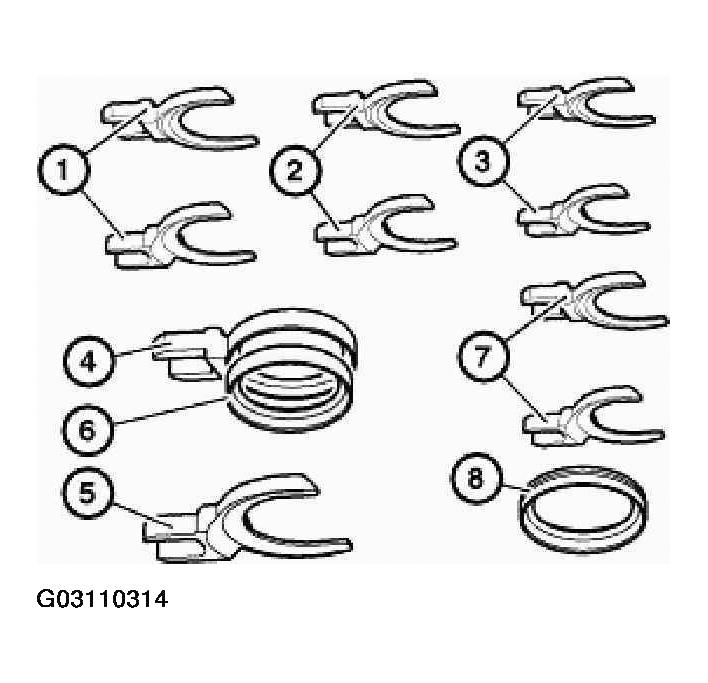

| Consisting of: 1 = 31 3 351 | Spring holder (2 x) |
| Note: To be used with repair instructions only | |
| 2 = 31 3 352 | Spring holder (2 x) |
| Note: To be used with repair instructions only | |
| 3 = 31 3 353 | Spring holder (2 x) |
| Note: To be used with repair instructions only | |
| 4 = 31 3 354 | Spring holder ring |
| Note: To be used with repair instructions only | |
| 5 = 31 3 355 | Spring holder |
| Note: To be used with repair instructions only | |
| 6 = 31 3 356 | Centering ring |
| Note: To be used with repair instructions only | |
| 7 = 31 3 357 | Spring holder (2 x) |
| Note: To be used with repair instructions only In conjunction with: 31 3 340 |
|
| 8 = 31 3 381 | Spring retainer |
| Note: To be used with repair instructions only. | |
| 9 = 31 3 382 | Spring retainer |
| Note: To be used with repair instructions only. | |
| 10 = 31 3 358 | Insert ring |
| Note: To be used with repair instructions only. For insertion in spring retainer ring 31 3 354. Model series: E87 | |
| 11 = 31 3 383 | Spring retainer |
| Note: To be used with repair instructions only. |
