31 3 340 Spring tensioner
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools

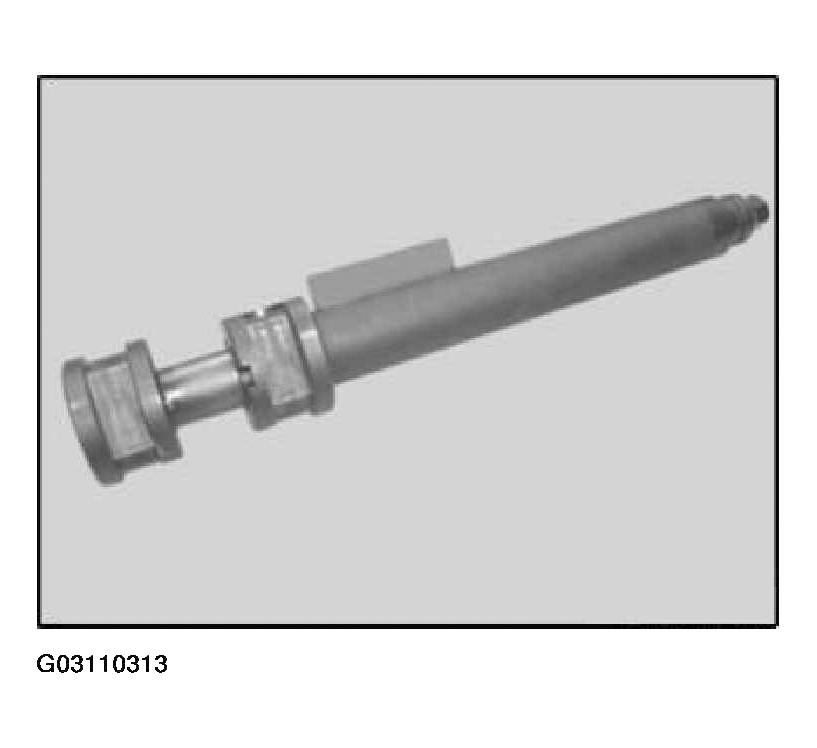

SPRING TENSIONER
| Note: | For tensioning coil springs when removing and installing spring strut. Used only in conjunction with repair instructions. |
| Series: | E31, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53 |
| Storage location: | Single |
| SI number: | 1 11 99 (438) |
| Order number: | 31 3 340 Spring tensioner |
| Consisting of: | |
| 1 = 31 3 341 | Spring tensioner, individual |
| 2 = 31 3 342 | Replacement pin |
