31 2 260 Pressure sleeve tool
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
PRESSURE SLEEVE TOOL
| Note: | For removing and installing rubber mounts in tension and pressure struts and in control arms (E46/5) |
| Series: | E38, E39, E46/5, E53 |
| Storage location: | A35 |
| SI number: | 1 03 99(418) |
| Order number: | 31 2 260 Pressure sleeve tool |

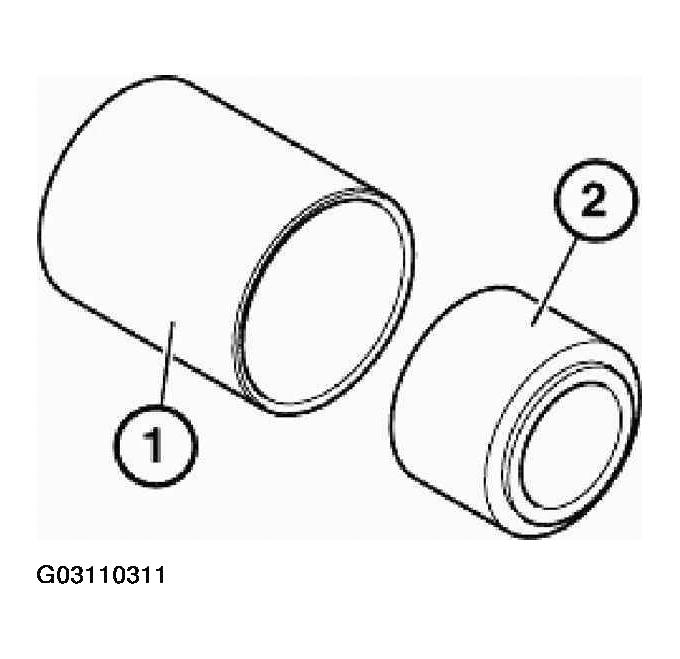

| Consisting of: 1 =312 261 | Pressure sleeve |
| Note: For bracing during removal and installation /series: E38, E39 For removing and installing rubber mounts in control arms / series: E46/5 In conjunction with: 31 2 134 (E46/5) |
|
| 3 = 312 263 | Pressure sleeve |
| Note: For removal and installation purposes - Series: E38, E39 | |
| 4 = 312 264 | Pressure sleeve |
| Note: For removal and installation purposes - Series: E53 |
