31 2 210 Socket wrench socket WAF 21

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

SOCKET WRENCH SOCKET WAF 21

Note:	For releasing shock absorber threaded connection (front axle with EDC)
Series:	E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E83, E85, E87, E90, R50, R52, R53
Storage location:	C18
SI number:	1 06 94(801)
Order number:	312 2 10 Socket wrench socket WAF 21

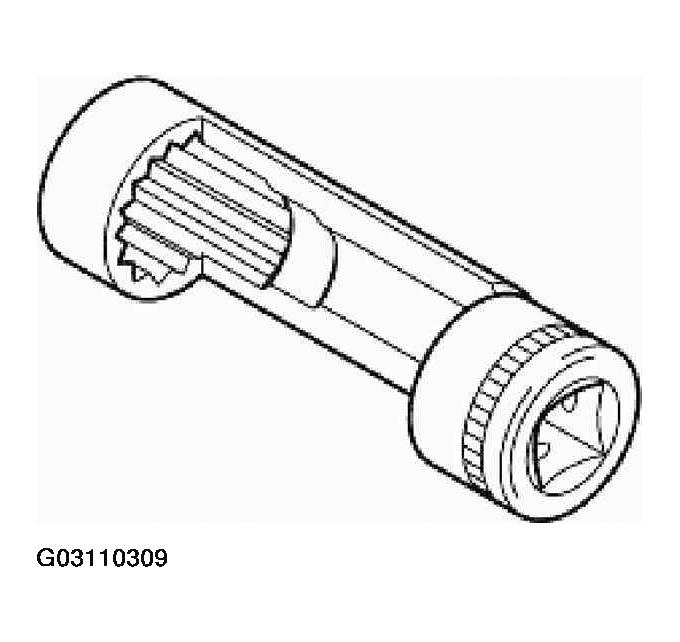

Fig 1: Identifying Socket Wrench Socket WAF 21

Courtesy of BMW OF NORTH AMERICA, INC.
