31 2 150 Fixture

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

FIXTURE

In conjunction with:	00 7 500
Note:	For removing and installing rubber mount in front control arm
Series:	E30, E36, E46, E85
Storage location:	A17, A38, B17, C36
Order number:	31 2 150 Fixture
Consisting of:
1 = 31 2 151	Plate
	Note: Model series: E30, E36, E46, E85
2 = 31 2 152	Thrust piece
	Note: Model series: E30, E36, E46, E85
3 = 31 2 153	Counter-holder
	Note: Model series: E30, E36, E46, E85
4 = 31 2 154	Spindle (2 x)
	Note: Model series: E30, E36, E46, E85
5 = 31 2 155	Take-up bridge
	Note: 4WD Model series: E30, E36, E46, E85
6 = 31 2 156	Counter-holder, diameter 79 mm
	Note: For installing rubber mount on control arm Model series: E46 In conjunction with: 00 7 500
7 = 31 2 157	Thrust piece, diameter 79 mm
	Note: For installing rubber mount on control arm Model series: E46 In conjunction with: 00 7 500
8 = 31 2 158	Adapter feet
	Note: Model series: E46

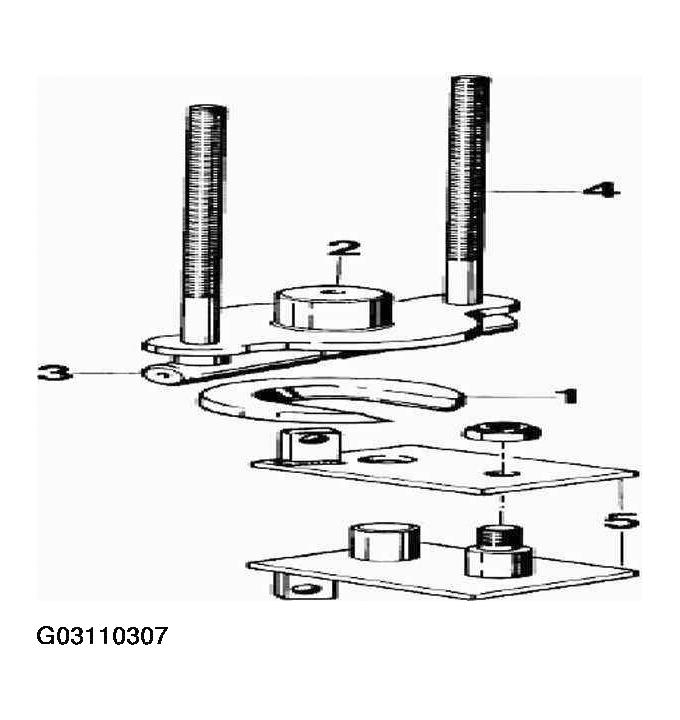

Fig 1: Identifying Fixture For Removing And Installing Rubber Mount In Front Control Arm

Courtesy of BMW OF NORTH AMERICA, INC.
