31 2 100 Fixture

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

FIXTURE

Note:	For detaching drive flange from all final drives
Series:	E28, E30, E31, E32, E36, E36/7, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E85, E87
Transmission:	Diff. 188kom, diff. 220kom, diff. type G, diff. type K, diff. type M
Storage location:	C7
Order number:	31 2 100 Fixture
Consisting of:
1 = 31 2 101	Spindle
	Note: All rear differentials
2 = 31 2 102	Frame
	Note: All rear differentials
3 = 31 2 103	Pull-off plate
	Note: Model series: E28
4 = 31 2 104	Pull-off plate
	Note: Model series: E30 and all rear differentials
6 = 31 2 106	Thrust piece
	Note: Model series: E31, E32, E36

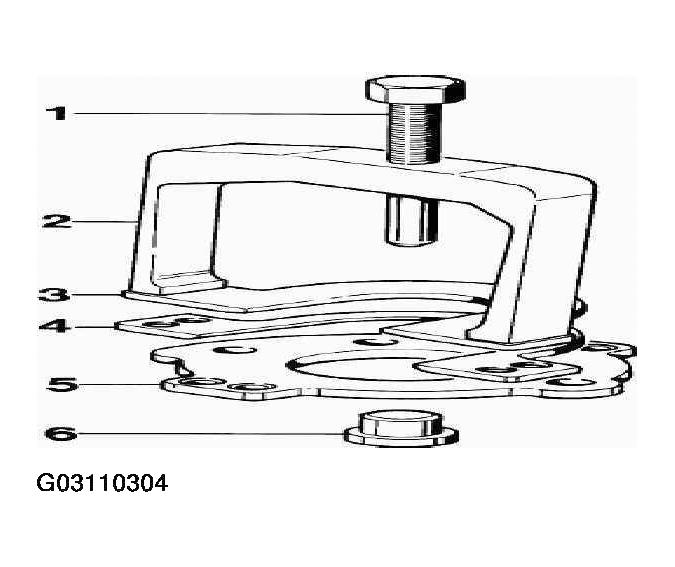

Fig 1: Identifying Fixture For Detaching Drive Flange From All Final Drives

Courtesy of BMW OF NORTH AMERICA, INC.
