31 1 060 Test fixture

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

WHEEL GUIDE JOINTS ON FRONT AXLE TESTING

Note:	For testing wheel guide joints on front axle
Series:	E46, E53
Order number:	31 1 060 Test fixture

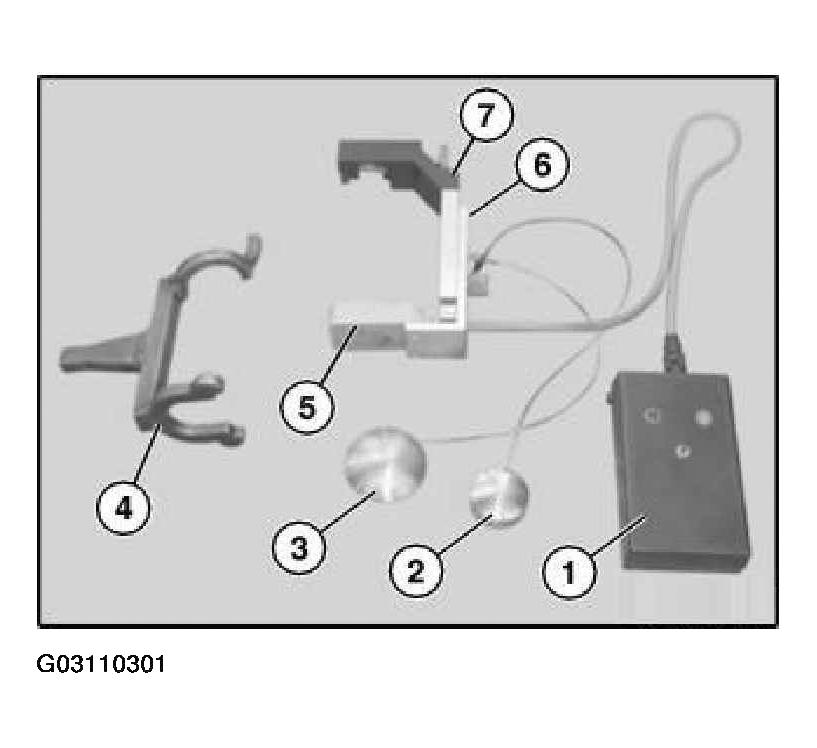

Fig 1: Identifying Test Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
