Valve Block (ARS): Removal

WARNING: This page is about a different car, the 2002 BMW 745i and 2002 BMW 745Li. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front right wheel arch trim.
  2. Use special tool (32 1 270) to seal off hydraulic lines.
  3. Detach hydraulic lines in sequence 1 to 6. See Fig 1 .
  4. Unlock plug connections and disconnect. Release screw (1) and remove grounding cable. Release screws (2). See Fig 2 .
  5. Carefully swivel valve block (2) out of holder. Unlock plug connection and disconnect. Unclip cable fastener (1) and remove valve block (2). See Fig 3 .
  6. Remove holder for valve block by releasing screws (1) and removing fasteners (2). See Fig 4 .

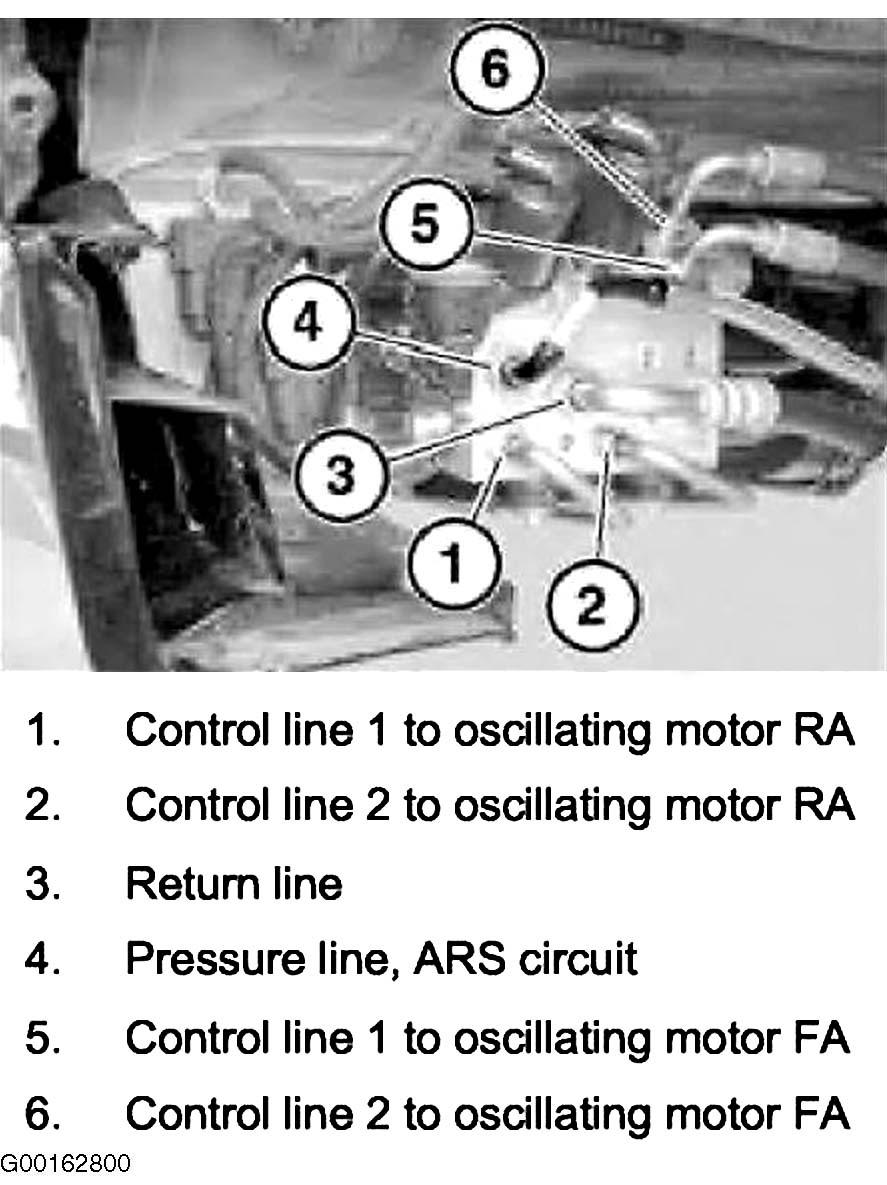

Fig 1: Detaching Hydraulic Lines
G00162800Courtesy of BMW OF NORTH AMERICA, INC.

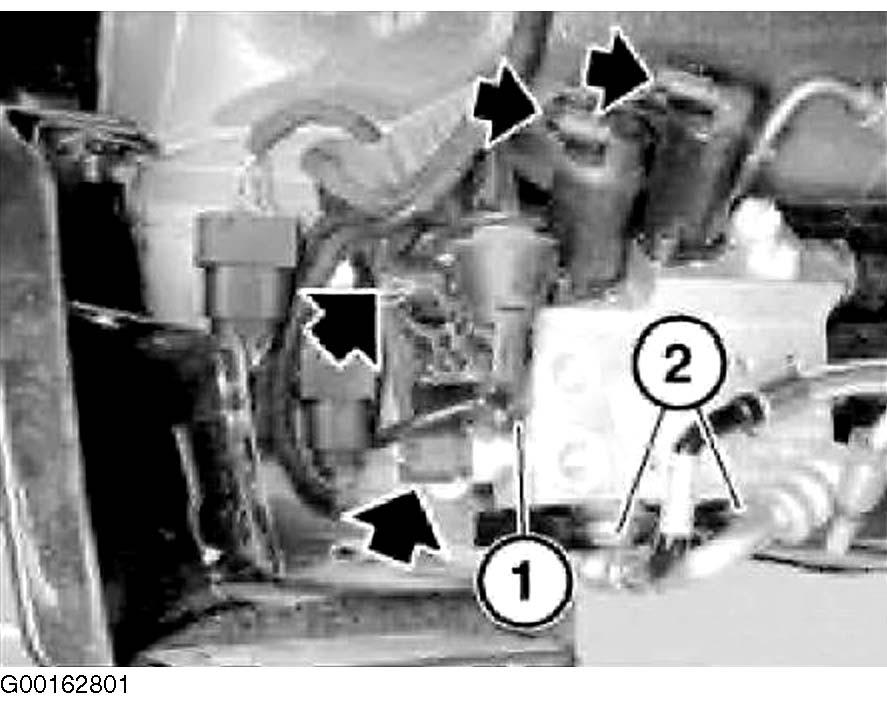

Fig 2: Locating Valve Block Screws
G00162801Courtesy of BMW OF NORTH AMERICA, INC.

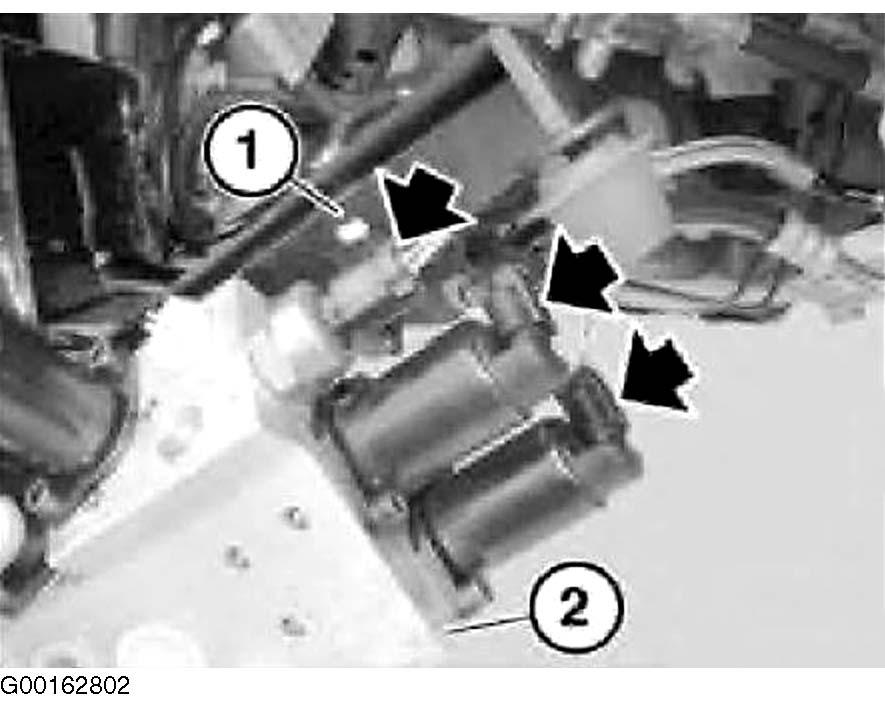

Fig 3: Removing Valve Block
G00162802Courtesy of BMW OF NORTH AMERICA, INC.

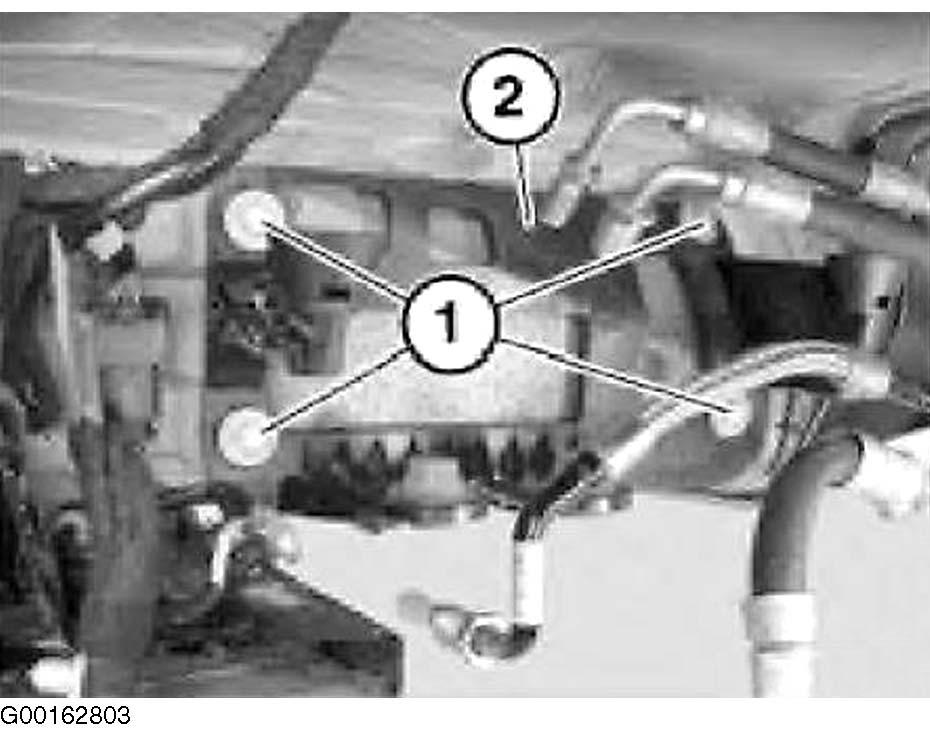

Fig 4: Removing Valve Block Holder
G00162803Courtesy of BMW OF NORTH AMERICA, INC.
