61 4 450 20-pin V-adapter lead (D 2.5), black

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 61 1 459, 61 4 440

NOTE: For LKM and EM convertible top GM, LCM, AMP

Series: E30, E31, E36, E38, E39, E46, E52, E53, E60, E61, E63, E64

Storage location: C 105

SI number: 1 08 90(250)

Order number: 61 4 450

20-pin V-adapter lead (D 2.5), black

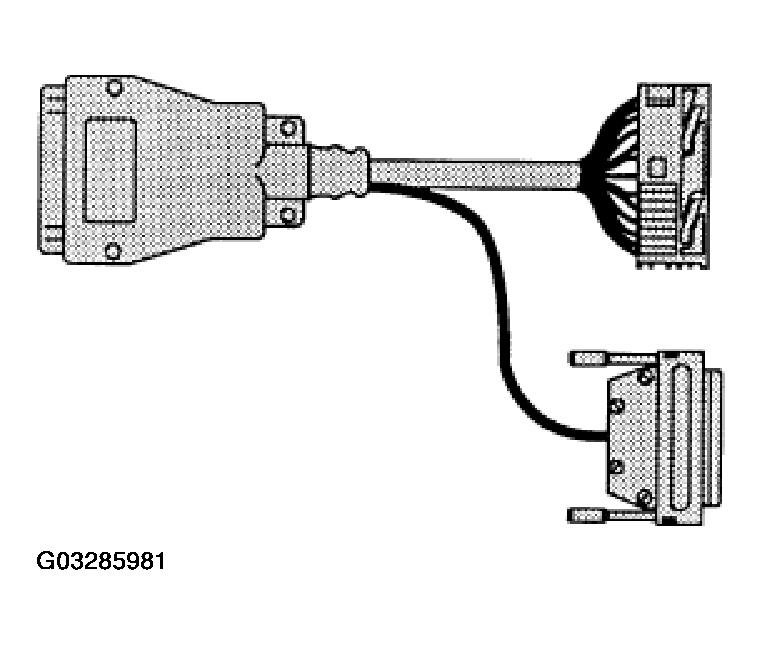

Fig 1: Identifying Pin V-Adapter Lead (D 2.5), Black
G03285981Courtesy of BMW OF NORTH AMERICA, INC.
