17 0 130 Set of adapters
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
In conjunction with: 17 0 101, 17 0 102
NOTE:
For connecting adapters from 17 0 000 to pump 17 0 101 and hose 17 0 102.
SI number: 01 07 02 (884)
Order number: 17 0 130

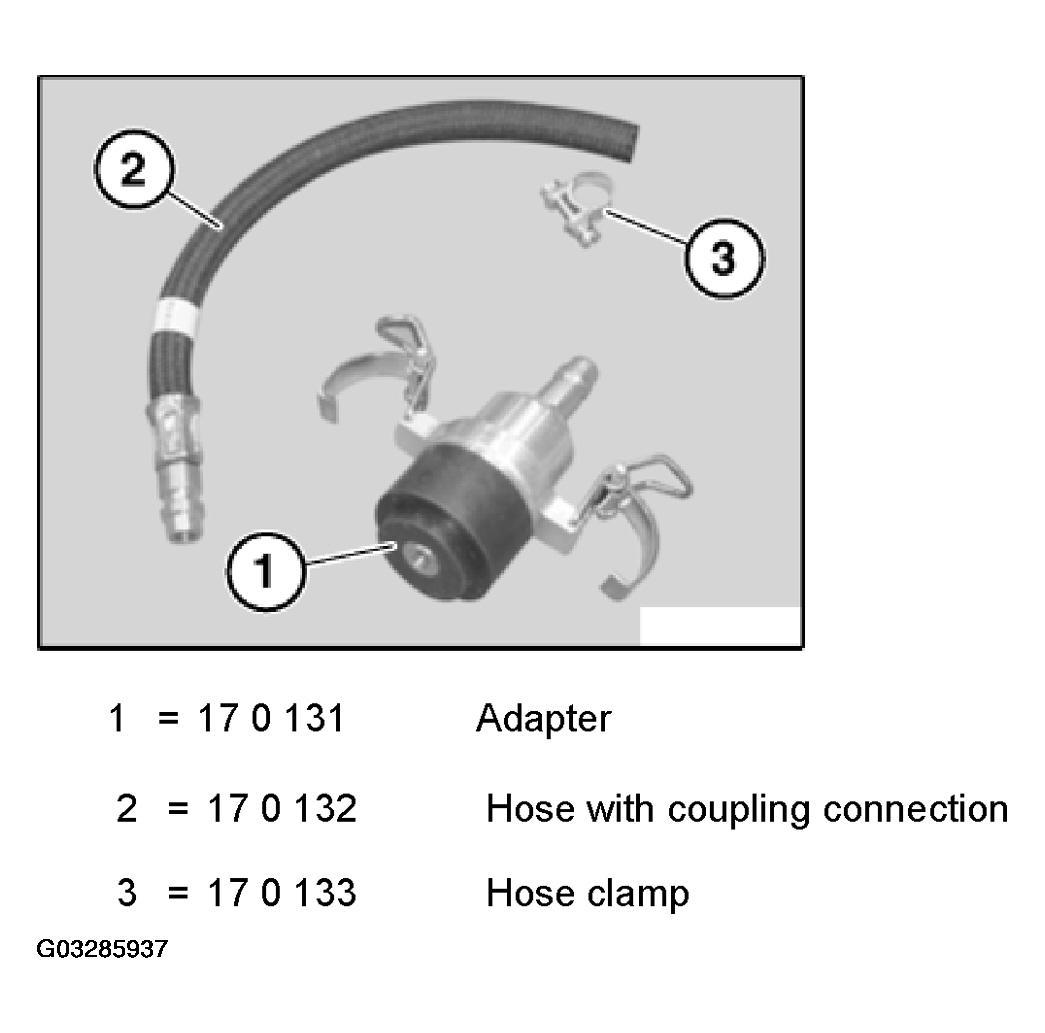

Set of adapters
Consisting of:
1 = 17 0 131 Adapter
NOTE:
For connecting pump 17 0 101 and hose 17 0 102 to adapter from 17 0 000
2 = 17 0 132 Hose with coupling connection
NOTE:
For connecting pump 17 0 101 to adapter 17 0 007
3 = 17 0 133 Hose clamp
NOTE:
For hose 17 0 132
