Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For checking engine cooling system for water leaks. For checking radiator cap.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, R50, R52, R53, RR1

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

SI number: 01 07 02 (884)

Order number: 17 0 100

Tester

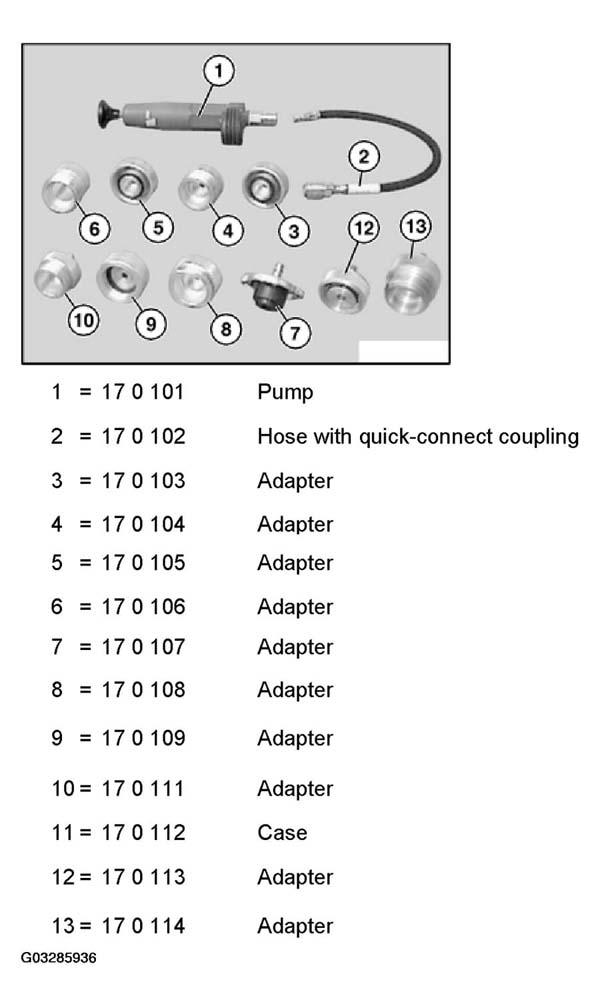

Fig 1: Identifying Tester

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 17 0 101 Pump

2 = 17 0 102 Hose with quick-connect coupling

3 = 17 0 103 Adapter

NOTE: For radiator cap (normal thread)

4 = 17 0 104 Adapter

NOTE: For radiator cap (normal thread)

5 = 17 0 105 Adapter

NOTE: For radiator cap (sawtooth thread)

6 = 17 0 106 Adapter

NOTE: For radiator cap (sawtooth thread)

7 = 17 0 107 Adapter

NOTE: For radiator cap R50 / W10

8 = 17 0 108 Adapter

NOTE: For radiator cap R50 / W10

9 = 17 0 109 Adapter

NOTE: For radiator connection R53/W11, R50/W17 Adapter corresponds to 17 0 051

10 = 17 0 111 Adapter

NOTE: For radiator cap R53/W11, R50/W17 Adapter corresponds to 17 0 052

11 = 17 0 112 Case

12 = 17 0 113 Adapter

NOTE: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988)

13 = 17 0 114 Adapter

NOTE: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988)
