13 5 280 Plugs for fuel lines

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For sealing off fuel lines when removing and installing engine - Applicable to M62 only fitted in E39 / M52 only fitted in E38 / S50B32 only fitted in E36 / N62 only fitted in E65 / M54 in E83.

Series: E36, E38, E39, E46, E60, E61, E63, E64, E65, E66, E67, E83, E85, R50, R52, R53, RR1

Engine: M52, M54, M62, N40, N42, N62, N73, S50B32, W10, W11

Storage location: B16

SI number: 1 18 96 (163)

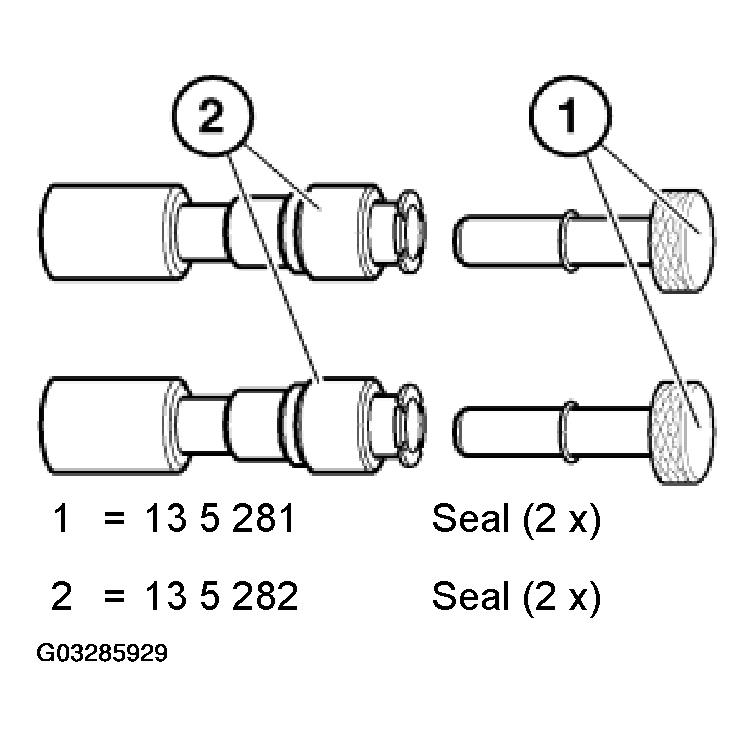

Fig 1: Identifying Plugs For Fuel Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 13 5 280

Plugs for fuel lines

Consisting of:

1 = 13 5 281 Seal (2 x)

NOTE: For sealing quick couplings

2 = 13 5 282 Seal (2 x)

NOTE: For sealing fuel lines
