Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 13 3 063 or 13 6 051

NOTE: For pressure gauge 13 3 061 or BMW DIS for measuring fuel pressure at injection rail

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

Storage location: C16

SI number: 1 06 95 (963)

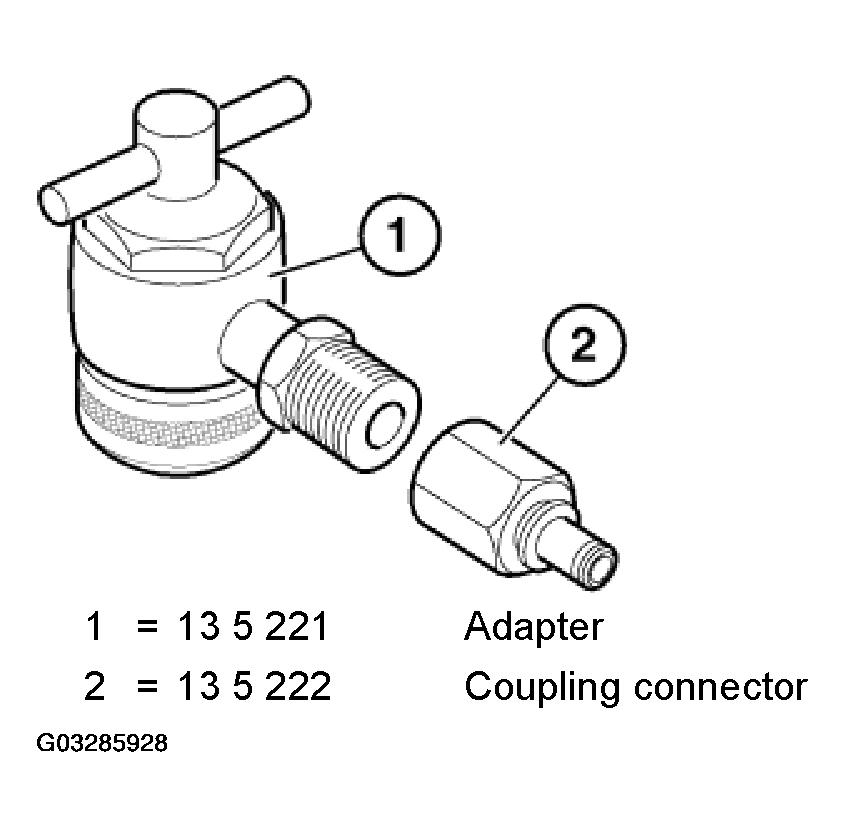

Fig 1: Identifying Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 13 5 220

Adapter

Consisting of:

1 = 13 5 221 Adapter

NOTE: Engine: M43, M44, M52, M62

2 = 13 5 222 Coupling connector

NOTE: For connecting DIS pressure sensor
