Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For removing and installing pulley on alternator

Engine: M10, M21, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M57, M57TU, M60, M62, M67, M70, M73, N46, N62, N73, S14, S50B30, S50B32

Storage location: B21

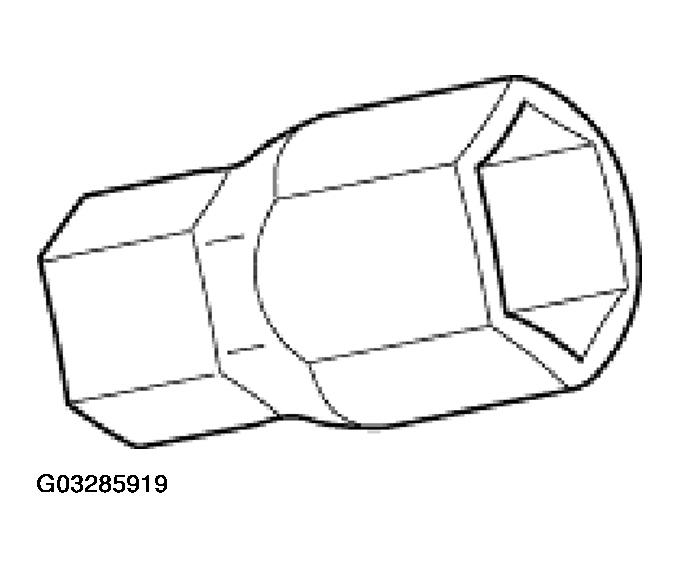

Fig 1: Identifying Socket Wrench Socket WAF 24

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 12 93(701)

Order number: 12 7 110

Socket wrench socket WAF 24
