Minimum set: Measuring and testing equipment
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
In conjunction with: 61 1 459
NOTE:
For diagnosis and troubleshooting on DME and transmission control - from model year 98
Engine: M54, M56, M62, M73, N40, N42, N46, N62, N73
Storage location: N 201, N 202, N 203, N 204
SI number: 2 04 97(248)
Order number: 12 1 300

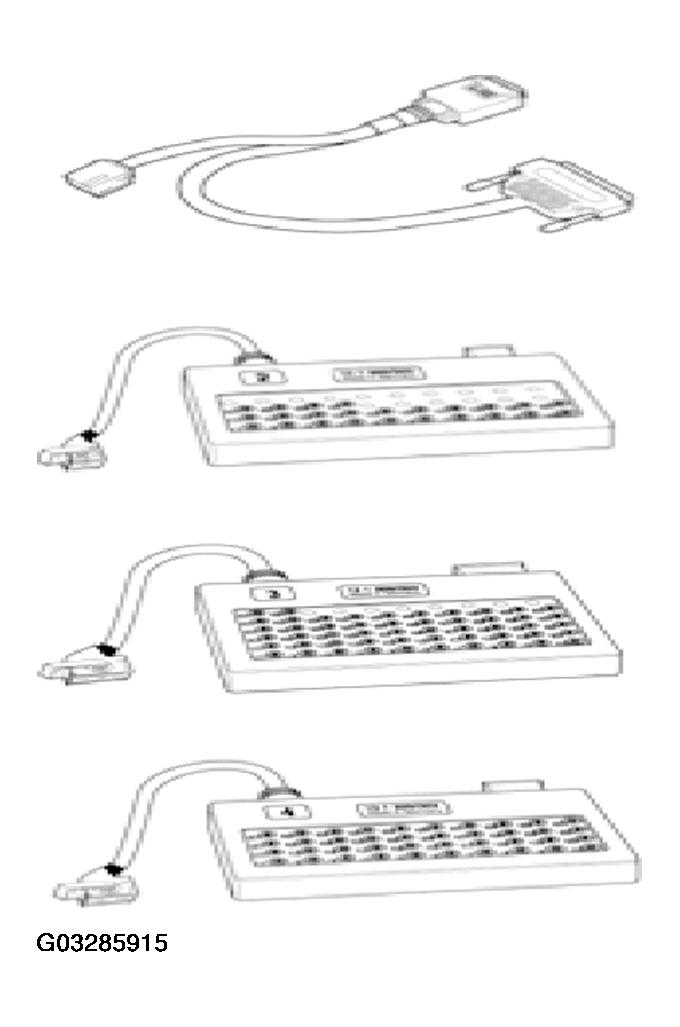

Adapter set for 134-pin module plug
Consisting of:
12 1 301 Adapter lead 9-pin
12 1 302 Measurement module 24-pin
12 1 303 Measurement module 40-pin
12 1 304 Measurement module 52-pin
NOTE:
Supplied from 08/2004 in conjunction with 12 1 305 (zero-coded cover cap for new SGM control unit in E6x)
