Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For installing/removing bearing bracket (Cam carrier)

Engine: N62, N62TU, N73

SI number: 1 14 01(766)

Order number: 11 9 470

Support

Consisting of:

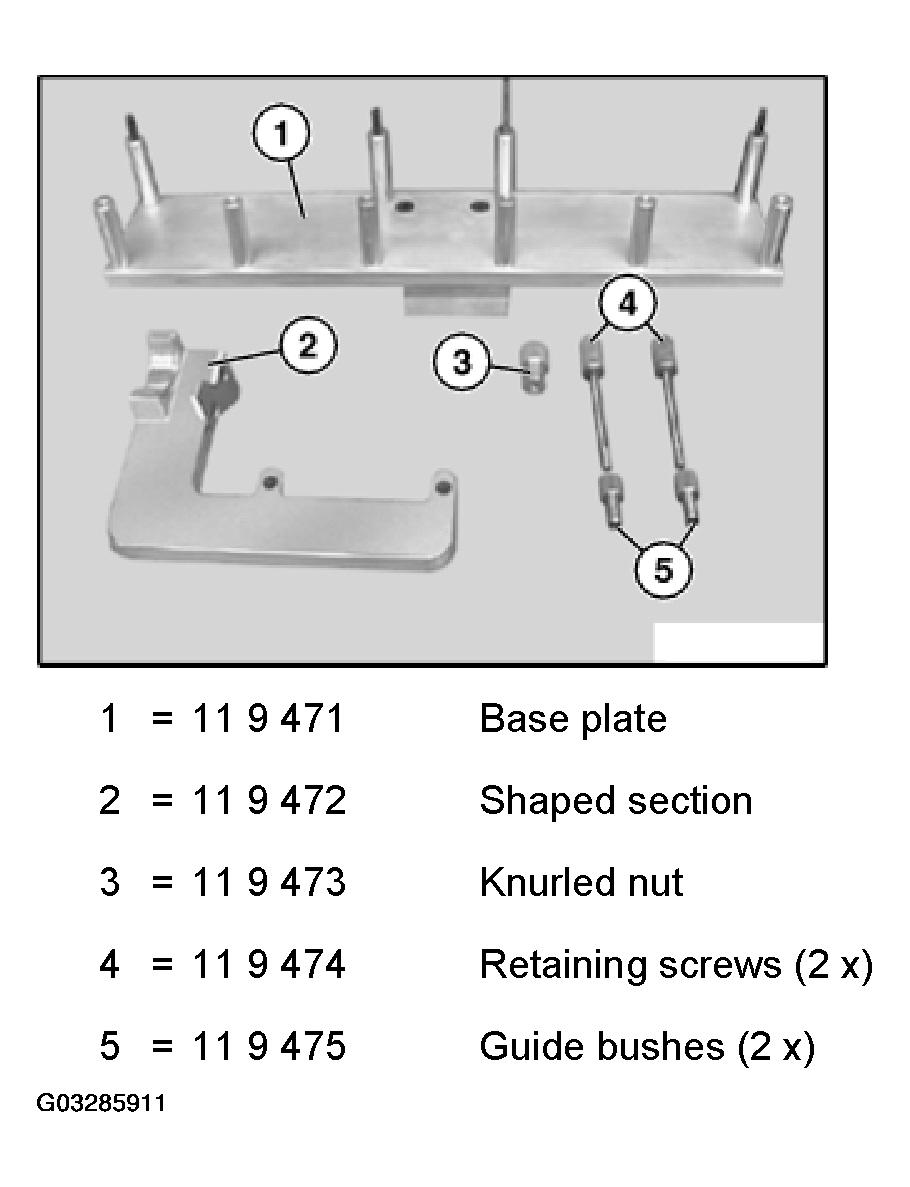

Fig 1: Identifying Support

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 11 9 471 Base plate

2 = 11 9 472 Shaped section

3 = 11 9 473 Knurled nut

4 = 11 9 474 Retaining screws (2 x)

5 = 11 9 475 Guide bushes (2 x)

6 = 11 9 476 Shaped section

NOTE: For securing inlet camshaft during installation in bearing bridge - Engine: N73
