Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For locating camshaft in TDC position

Engine: N62, N62TU, N73

Storage location: B45

SI number: 1 14 01 (766)

Order number: 11 9 460

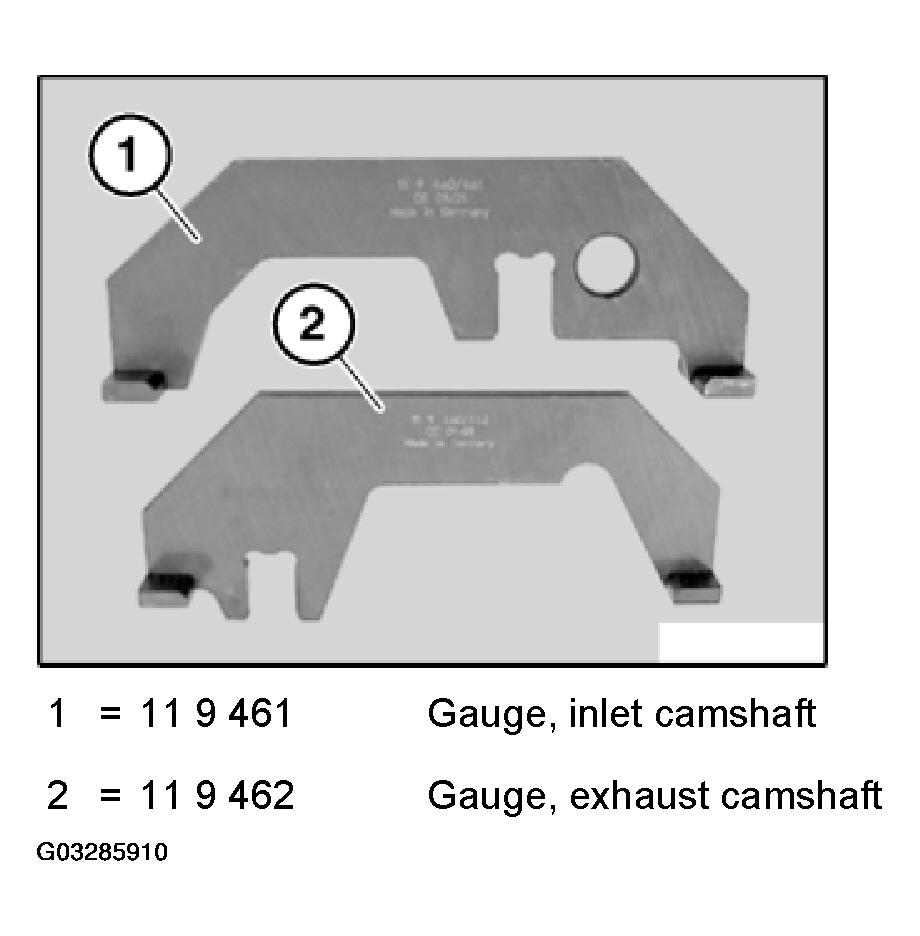

Fig 1: Identifying Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

Gauge

Consisting of:

1 = 11 9 461 Gauge, inlet camshaft

2 = 11 9 462 Gauge, exhaust camshaft

3 = 11 9 463 Holder with screw
