Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For locking flywheel with transmission removed

Engine: M47TU, M54, M57T2, M57TU, N40, N42, N45, N46, N52, N62, N73, S85, W17

Storage location: A45, B43, C44

SI number: 1 01 01 (662)

Order number: 11 9 260

Counter support with screw connection

Consisting of:

1 = 11 9 261 Counterholder, individual

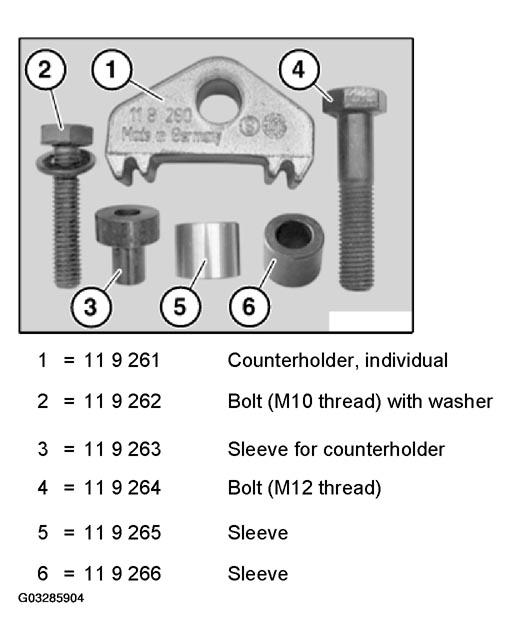

Fig 1: Identifying Counter Support With Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 11 9 262 Bolt (M10 thread) with washer

NOTE: For bolting down counterholder

3 = 11 9 263 Sleeve for counterholder

NOTE: For counterholder for locking

flywheel with transmission removed engine: N62, N73

4 = 11 9 264 Bolt (M12 thread)

NOTE: For counterholder for locking flywheel with transmission removed

5 = 11 9 265 Sleeve

6 = 11 9 266 Sleeve

NOTE: For counterholder for locking flywheel with transmission removed

Engine: M57TU2
