Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: Assembly stand 00 1 450

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

Storage location: Single

SI number: 1 03 02 (833)

Order number: 11 9 000

Cylinder head expander tool

Consisting of:

1 = 11 9 001 Fixture

2 = 11 9 002 Rod

3 = 11 9 003 Sliding block with M10 thread

4 = 11 9 004 Tab

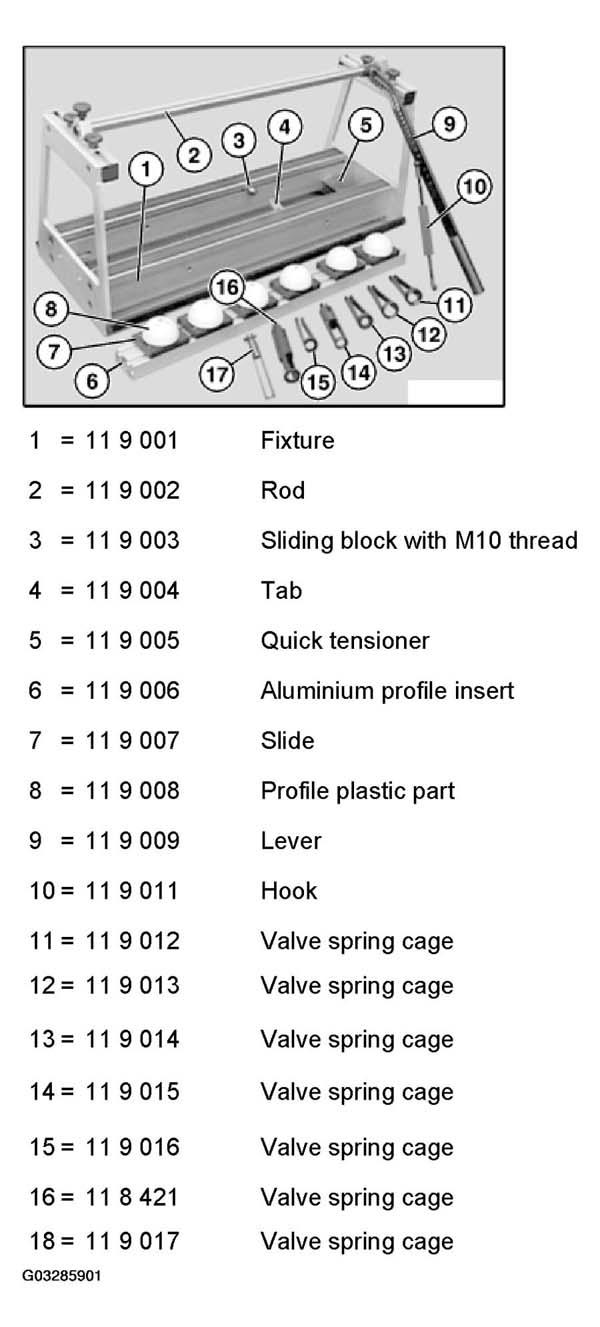

Fig 1: Identifying Cylinder Head Expander Tool

Courtesy of BMW OF NORTH AMERICA, INC.

5 = 11 9 005 Quick tensioner

6 = 11 9 006 Aluminum profile insert

7 = 11 9 007 Slide

8 = 11 9 008 Profile plastic part

9 = 11 9 009 Lever

10 = 11 9 011 Hook

11 = 11 9 012 Valve spring cage

NOTE: Engine M41, M51, S50

12 = 11 9 013 Valve spring cage

NOTE: Engine M43, M73

13 = 11 9 014 Valve spring cage

NOTE: Engine M44, M52, M54, M56, M62, S52, S54, S62

14 = 11 9 015 Valve spring cage

NOTE: Engine M47, M47TU, M57, M57TU, N40, N42, N62, N73

15 = 11 9 016 Valve spring cage

NOTE: Engine M21, M40

16 = 11 8 421 Valve spring cage

NOTE: Engine: W10, W11, W17

18 = 11 9 017 Valve spring cage

NOTE: Engine N52
