Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For fitting valve stem seals, 7 mm diameter

Engine: M20, M21, M40, M42, M43, M50, M51, N62, S50B30, S50B32

Order number: 11 1 380

Assembly sleeves

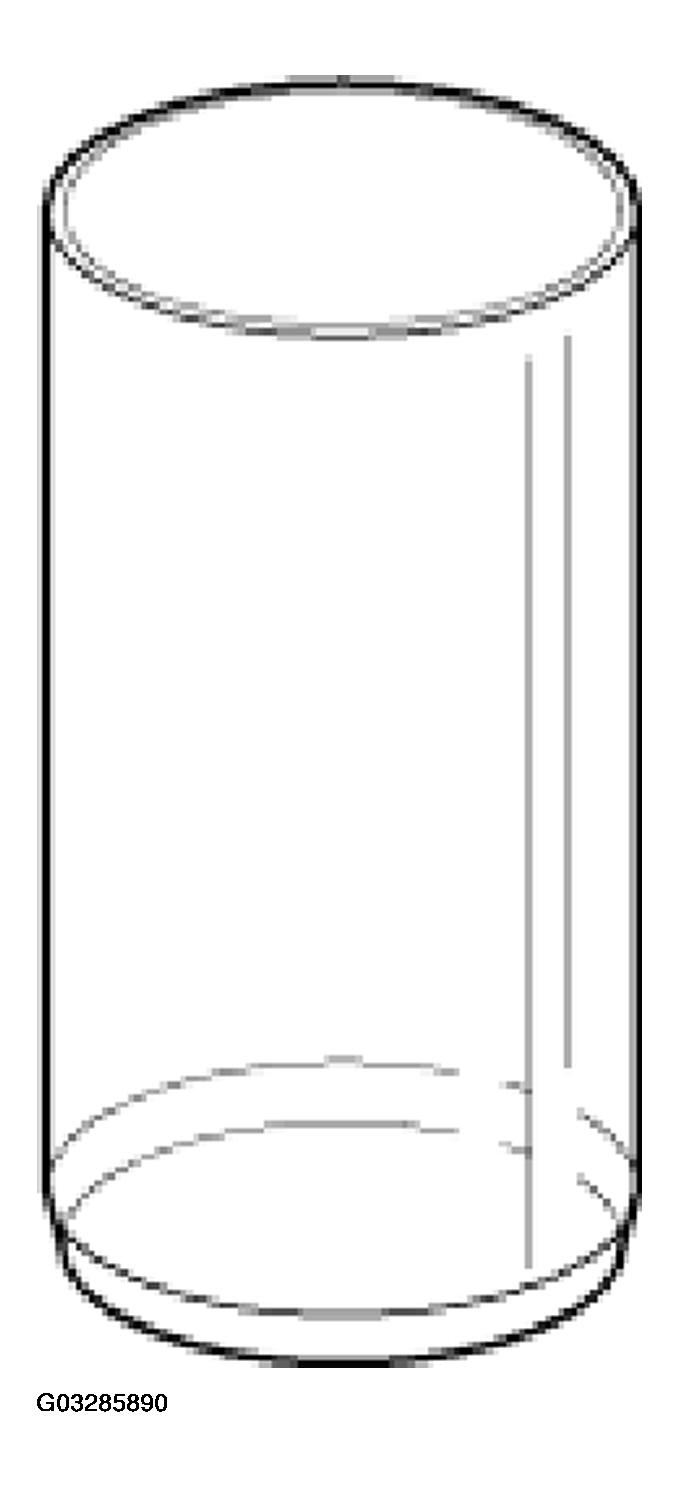

Fig 1: Identifying Assembly Sleeves
G03285890Courtesy of BMW OF NORTH AMERICA, INC.
