11 0 340 Accessories

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 1 060

NOTE: For removing and installing valve springs

Engine: M20, M21, M30, M40, M41, M42, M43, M44, M47, M47TU, M50, M51, M52, M57, M57D25, M57D30, M60, M62, M70, M73, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S54, S62

SI number: 1 12 93(701)

Order number: 11 0 340

Accessories

Consisting of:

1 = 11 0 341 Valve spring cage

NOTE: Engine: M43, M73

2 = 11 0 342 Pressure lever

NOTE: Engine: all, except M10

3 = 11 0 343 Hook

NOTE: Length 220 mm - Engine: all, except M10

5 = 11 0 345 Valve spring cage

NOTE: Engine: M44, M52, M62, S62, S54

6 = 11 0 346 Valve spring cage

NOTE: Engine: M47, M47TU, M57, N40, N42

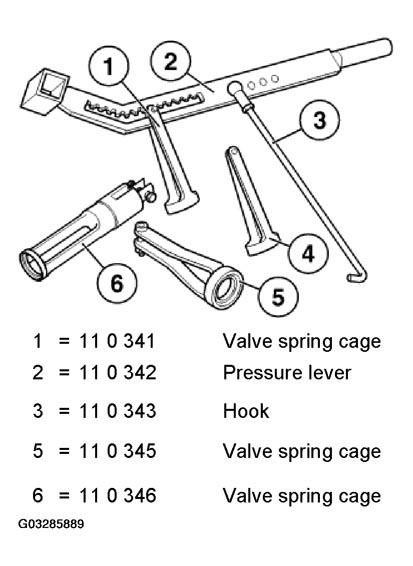

Fig 1: Identifying Accessories
G03285889Courtesy of BMW OF NORTH AMERICA, INC.
