Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For all petrol/gasoline and diesel engines.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

SI number: 1 09 92 (558)

Order number: 11 0 220 Compression test kit

Consisting of:

16 = 11 0 239 Adapter

NOTE: Engine M67, M67TU

11 0 221 Compression recorder for diesel engines

11 0 222 Test probe

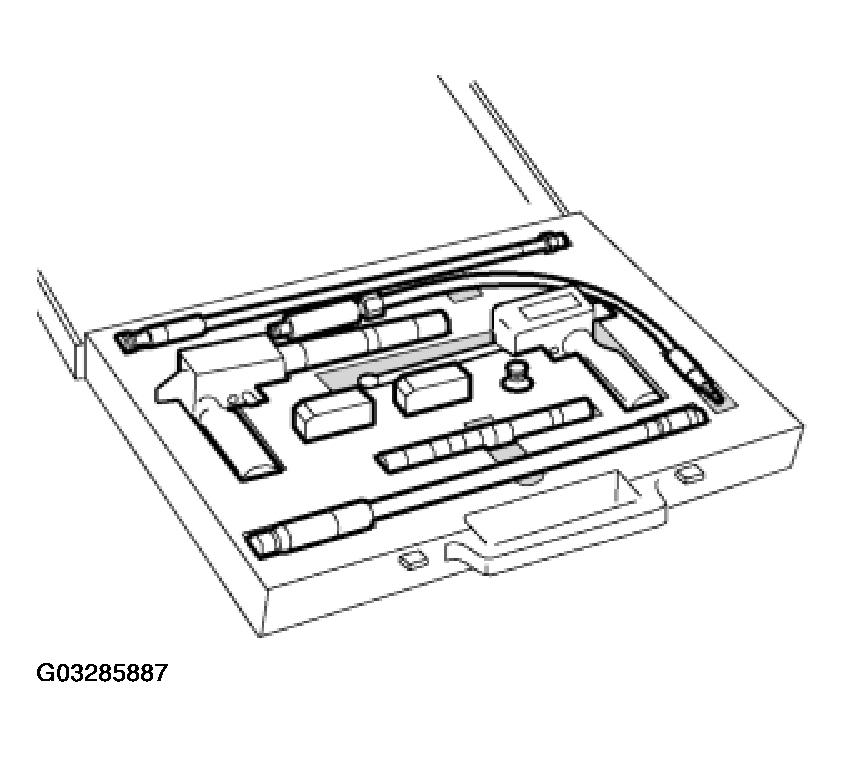

Fig 1: Identifying Compression Test Kit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For compression recorder 11 0 221 and 11 0 160 / Engine: M21, M41, M47, M51, M57

In conjunction with: 11 0 240

11 0 223 Test sheets (100 x)

NOTE: For compression recorder for 11 0 221

11 0 224 Compression recorder for petrol/gasoline engines

11 0 226 Test probe

NOTE: For compression recorder 11 0 224 and 11 0 160 / engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, S50US, S52US, S62

In conjunction with: 11 0 240

11 0 228 Rubber taper with fitting

NOTE: For compression recorder 11 0 224 and 11 0 160 / engine: M10, M20, M30

In conjunction with: 11 0 240

11 0 229 Test charts (100 x)

NOTE: For compression recorder 11 0 224

11 0 231 Case

NOTE: With foam inlay for compression recorder

11 0 233 Non-return valve

11 0 234 Filter 3 x 3 mm

11 0 235 Test probe, screw-in

NOTE: For measuring "absolute compression" at all cylinders, engine: S14, S38, S50B30, S50B32, S50US, S52US, S54

In conjunction with: DIS and DIS pressure sensor

11 0 236 Test probe

NOTE: For compression recorder 11 0 221 or DIS pressure sensor / engine: M47, M57, M57TU

11 0 237 Adapter

NOTE: For measuring "absolute compression" at all cylinders. Engine: W17

In conjunction with: 11 0 221, 11 0 235 or DIS pressure sensor, 11 0 235
