Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Engine: M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M47TU, M50, M51, M52, M54, M57, M57D25, M57D30, M57TU, N52, N62, N73, S38, S50B30, S50B32, S50US, S85

SI number: 1 13 94 (888)

Order number: 11 0 020 Engine hoist for removing and installing engines

Consisting of:

1 = 11 0 021 Lifting beam

2 = 11 0 022 Chain, medium

3 = 11 0 023 Chain, long

4 = 11 0 024 Chain, short

5 = 11 0 029 Shackle (2 x)

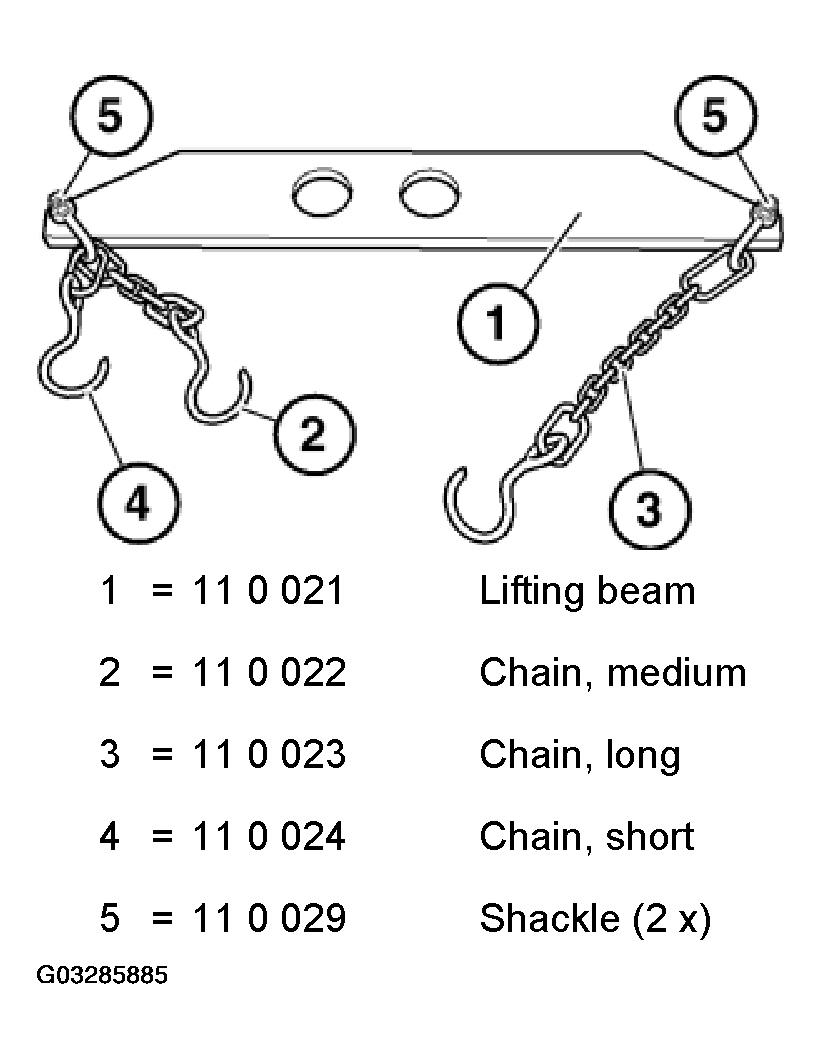

Fig 1: Identifying Engine Hoist For Removing And Installing Engines
G03285885Courtesy of BMW OF NORTH AMERICA, INC.
