23 3 010 Fixture
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTIONS
| Note: |
For fitting output flange on output shaft |
| Transmission: |
S6S 420G, S6S 560G |
| Storage location: |
A26 |
| SI number: |
1 10 93(689) |
| Order number: |
23 3 010 |
| |
Fixture |

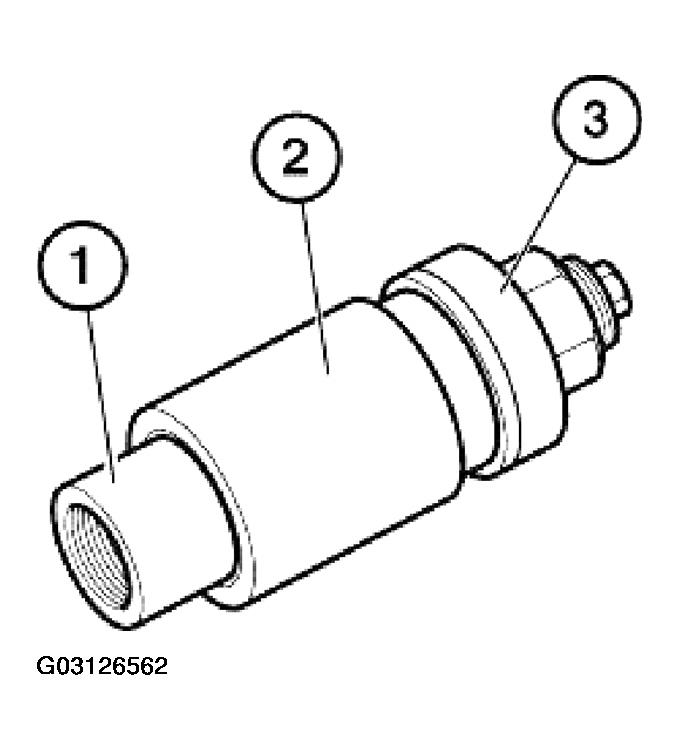

| Consisting of: |
|
| 1 = 23 3 011 |
Adapter spindle |
| 2 = 23 3 012 |
Pressure sleeve |
| 3 = 23 3 013 |
Pressure nut with bearing |
Courtesy of BMW OF NORTH AMERICA, INC.
