23 2 330 Fixture

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS DESCRIPTIONS

Note:	For installing complete gear train in rear section of transmission housing
Transmission:	S5D 310Z
Storage location:	C18
SI number:	1 07 90(244)
Order number:	23 2 330
	Fixture

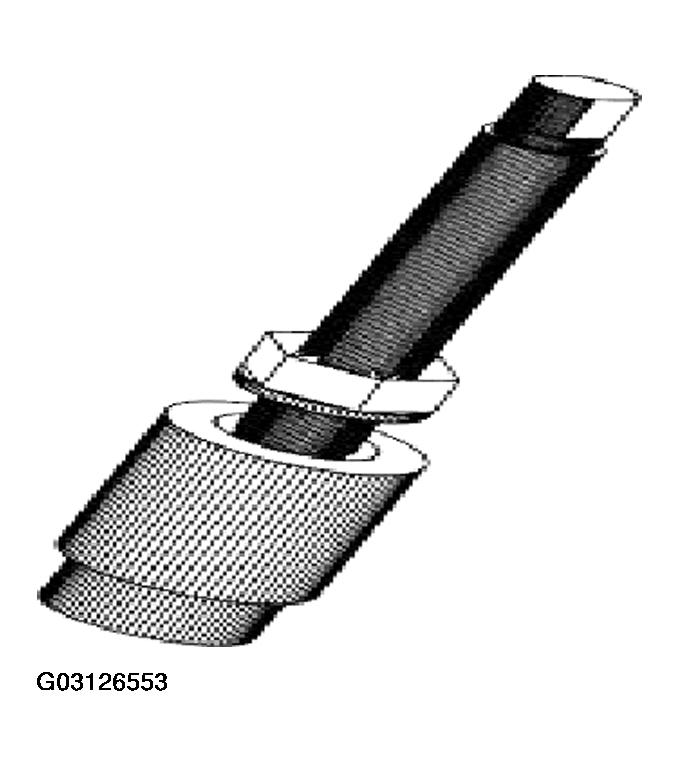

Fig 1: Identifying 23 2 330 Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
