23 2 290 Fixture
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTIONS
| Note: |
For mounting front section of transmission casing |
| Transmission: |
S5D 310Z |
| Storage location: |
C18 |
| SI number: |
1 07 90(244) |
| Order number: |
23 2 290 |
| |
Fixture |

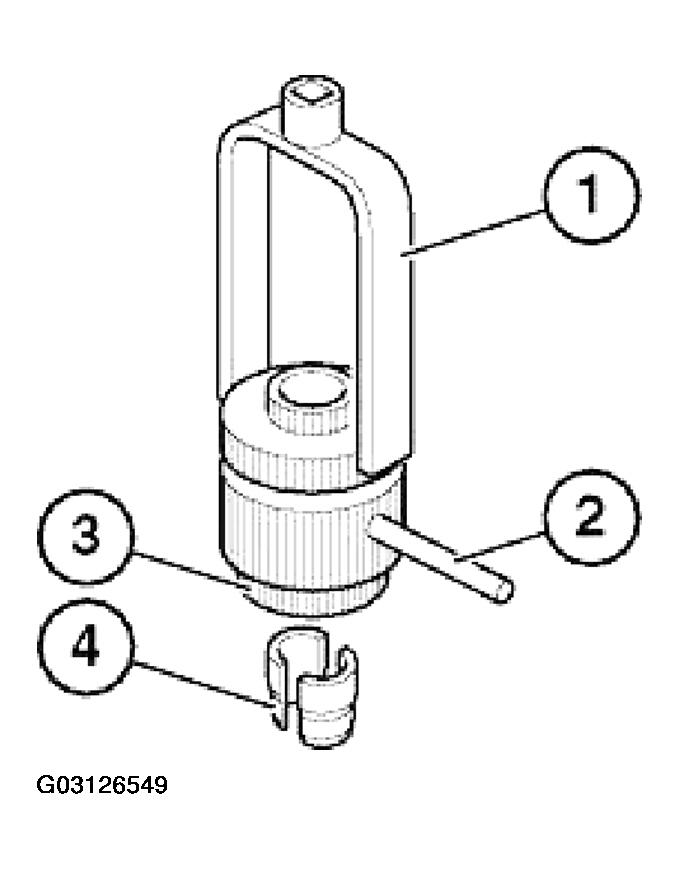

| Consisting of: |
|
| 1 = 23 2 291 |
Base frame |
| 2 = 23 2 292 |
Support |
| 3 = 23 2 293 |
Ring |
| 4 = 23 2 294 |
Set of shells |
Courtesy of BMW OF NORTH AMERICA, INC.
