SPECIAL TOOLS DESCRIPTIONS

In conjunction with:	23 2 150
Note:	For fitting output flange on all manual and automatic transmissions, for installing deep groove ball bearing on transmission output shafts and for fitting input flange on all rear axle differentials
Series:	E36, E36/2, E36/3, E36/5, E36/7, E36/C, E38, E39, E46, E52, E53, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91
Transmission:	HAG 188kom, HAG 220kom, HAG 225kom, HAG Type G, HAG Type K, HAG Type M, S5D 200G, S5D 250G
Storage location:	B15, B16
Order number:	23 1 300
	Fixture
Consisting of:
1 = 23 1 301	Adapter
2 = 23 1 302	Support disk
	NOTE: For pressing drive flange onto rear differential
	In conjunction with: 33 1 341, 23 1 300
3 = 23 1 303	Mandrel

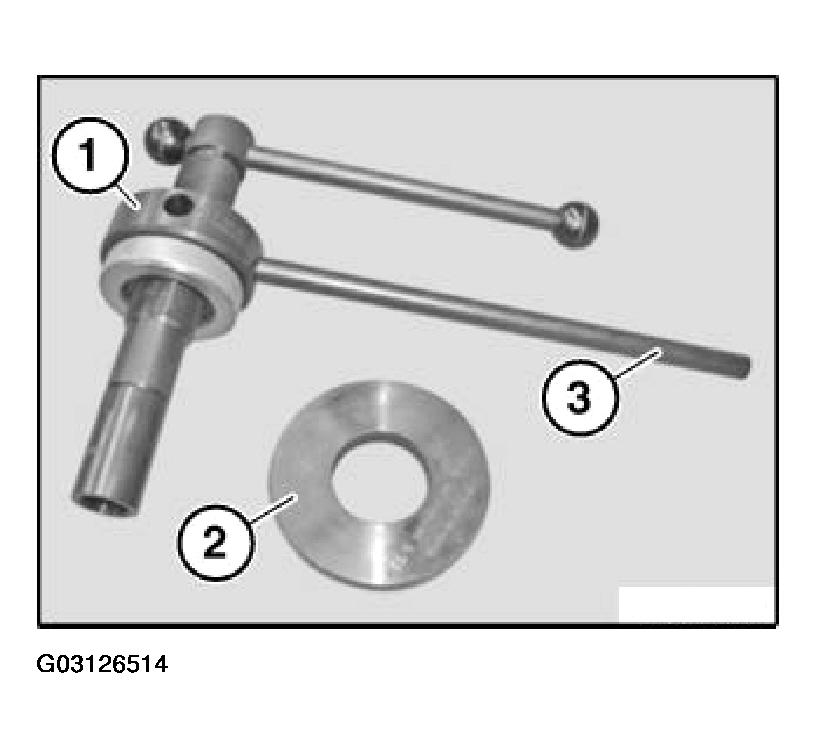

Fig 1: Identifying 23 1 300 Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
