23 1 080 Drift

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTIONS

In conjunction with: 00 5 500
Note: For removing and installing outer bearing race in front section of transmission casing/center section of countershaft and of ball bearing in rear section of transmission casing, input shaft
Transmission: 245/5, 265/5
Storage location: A28
Order number: 23 1 080
  Drift

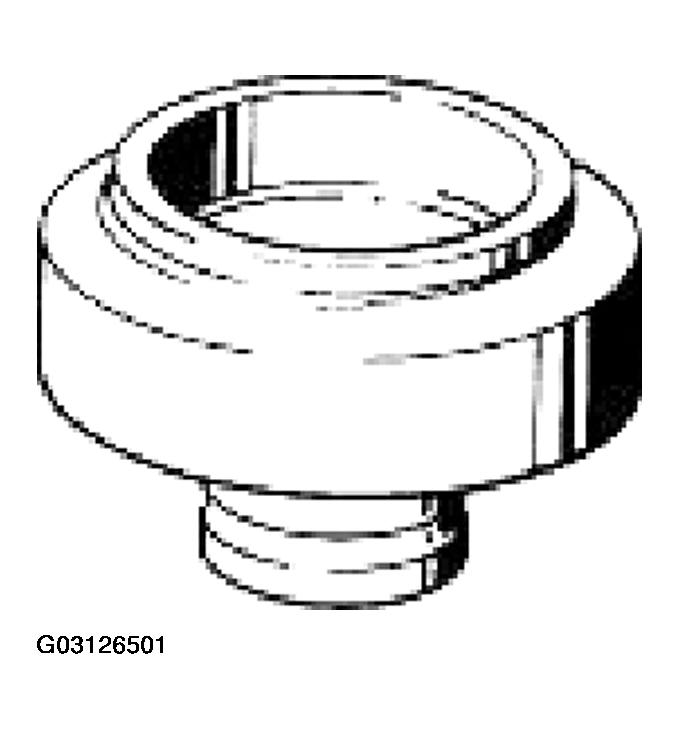

Fig 1: Identifying 23 1 080 Drift
G03126501Courtesy of BMW OF NORTH AMERICA, INC.
