23 1 070 Measuring ring

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS DESCRIPTIONS

Note:	For determining shim ring between outer bearing race and circlip of countershaft
Transmission:	245/5
Storage location:	B28
Order number:	23 1 070
	Measuring ring

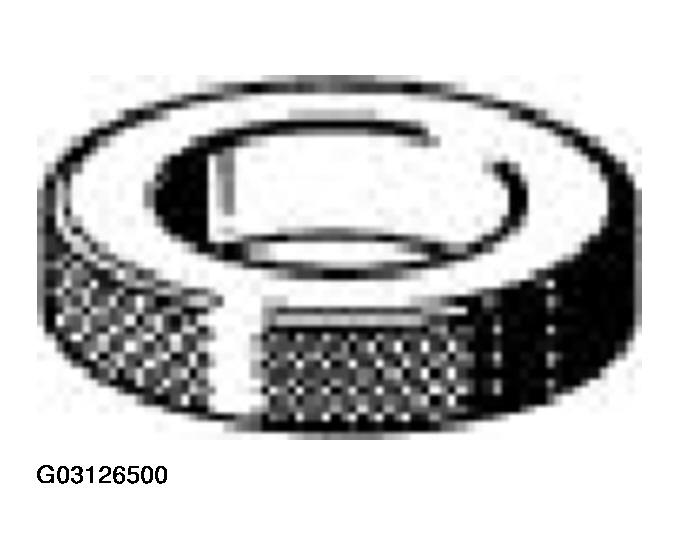

Fig 1: Identifying 23 1 070 Measuring Ring

Courtesy of BMW OF NORTH AMERICA, INC.
