23 1 000 Fixture
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTIONS
| Note: | For pressing-on transmission casing and deep groove ball bearing on transmission input shaft and in transmission casing |
| Transmission: | 240/5, 242/4, 245/5, 245/5Sport, 260/5, 262/4, 265/5, 265/5Sport, 280/5Sport, 3 HP 12, 3 HP 20, 3 HP 22, 4 HP 22, 4 HP 24, A4S 270R, A4S 31 0R, A5S 300J, A5S 310Z, A5S 440Z, A5S 560Z, BW 65, S5D 260Z |
| Storage location: | C15, C16 |
| Order number: | 23 1 000 |
| Fixture | |

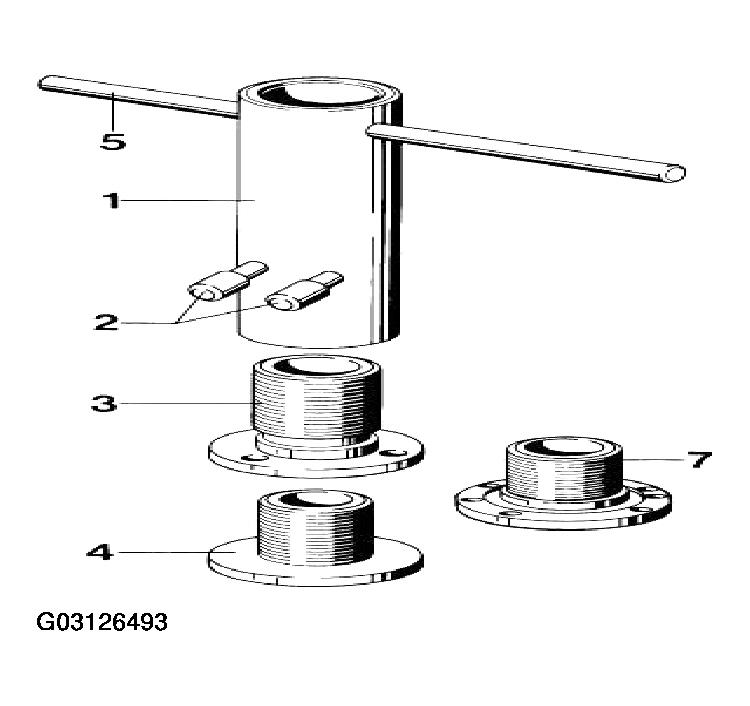

| Consisting of: | |
| 1 = 23 1 001 | Sleeve |
| 2 = 23 1 002 | Dowel pin (2 x) |
| 3 = 23 1 003 | Thrust piece, long |
| 4 = 23 1 004 | Thrust piece, short |
| 5 = 23 1 005 | Handle |
| 7 = 23 1 007 | Thrust piece for Getrag transmissions |
