23 0 490 Extractor
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2003 BMW M5, 2003 BMW 540i, 2003 BMW 530i, 2003 BMW 525i, and 2002 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTIONS
| Note: | For removing shaft seal |
| Series: | E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E53, E60, E61, E63, E64, E83, E85, E87, E90, E91, R50, R52 |
| Transmission: | GS5-39DZ, GS5-65BH, GS6-17BG, GS7S47BG, S5D 200G, S5D 250G, S5D 260Z, S5D 280Z, S5D 310Z, S5D 320Z, S5D 390Z, S6S 420G, S6S 560G |
| Storage location: | B6, C6 |
| SI number: | 1 15 96(106) |
| Order number: | 23 0 490 |

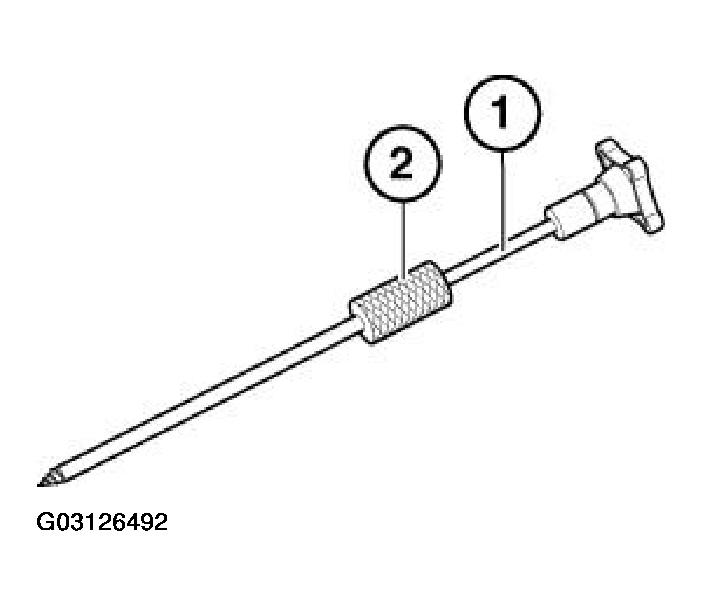

| Extractor | |
| Consisting of: | |
| 1 = 23 0 491 | Rod |
|
NOTE:
With self-tapping screw
|
|
| 2 = 23 0 492 | Impact weight |
