Swivel Bearing: Installation

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

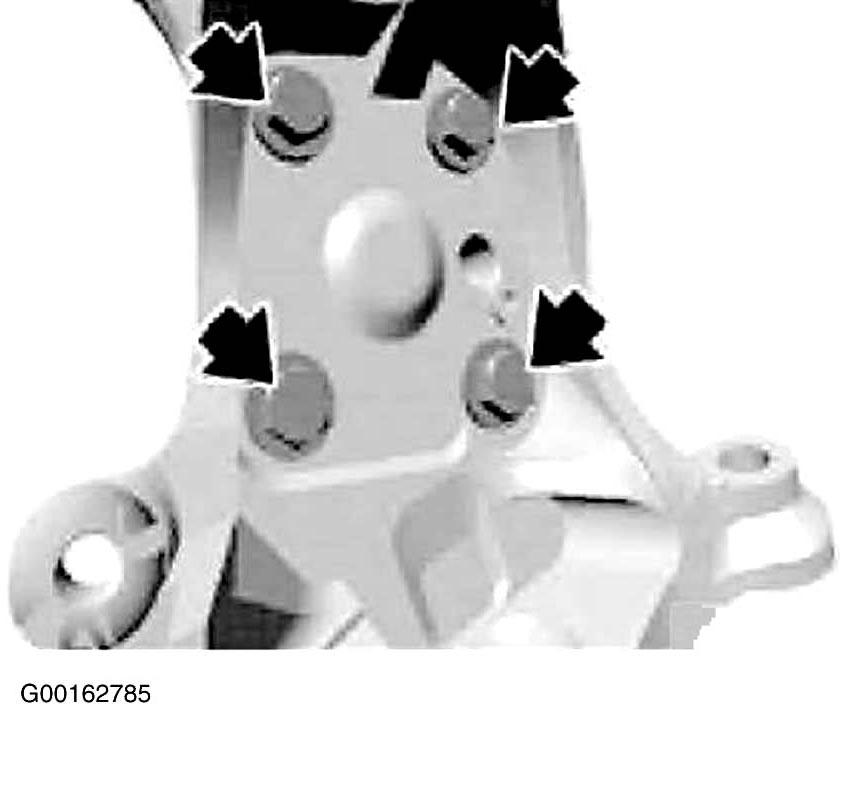

  1. Mount protecting plate to new swivel bearing. See Figure .

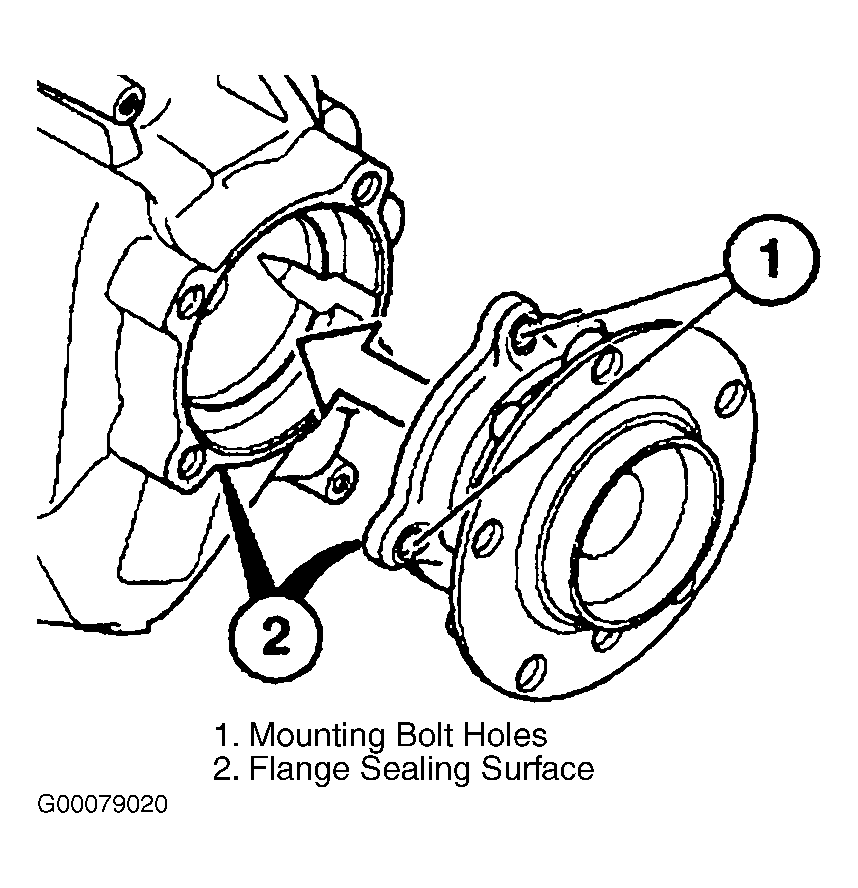

  2. Install new wheel bearing in swivel bearing. Contact face (2) of wheel bearing and swivel bearing and the threaded bores (1) must be clean and free of grease. See Figure . Tighten screws to specification. See TORQUE SPECIFICATIONS  .
  3. Installation is reverse of removal.
