Front Active Stabilizer Bar: Removal
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
- Remove engine underguard.

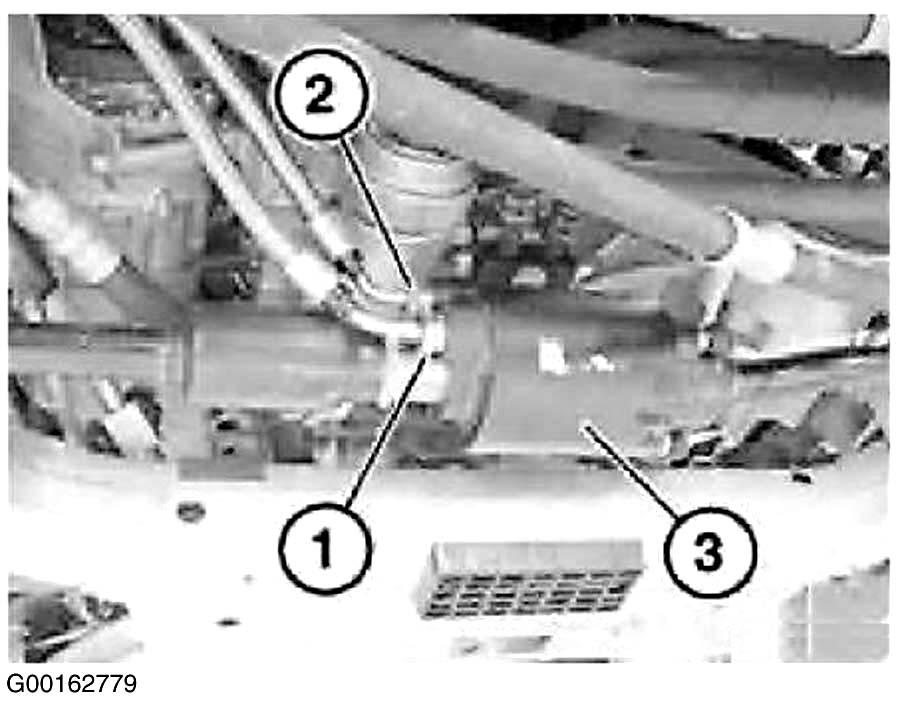

- Release screws (1, 2) from oscillating motor (3). See Fig 1
.

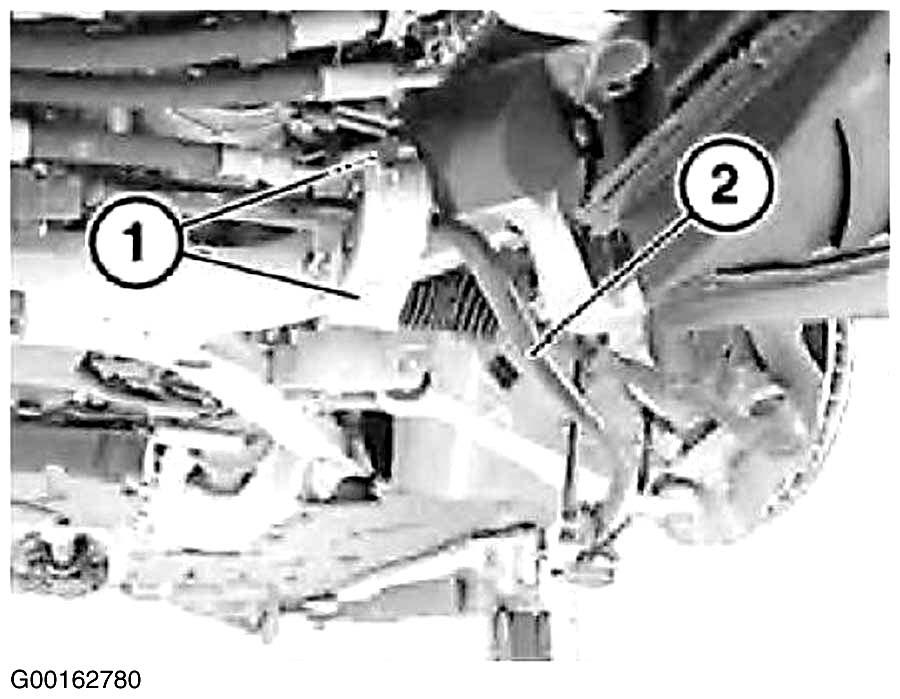

- Remove left and right stabilizer. See Fig 2
.
- Release screws (1) from antifriction bearings on left and right. Remove stabilizer bar (2) with antifriction bearing from front axle support. See Fig 3
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
