63 99 445 Replacing bulb(s) for mirror light

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Follow instructions for handling light bulbs (interior lights).

Remove mirror light.

Spread bow contacts (1) and remove bulb(s) (2).

Installation:

Note type of bulb.

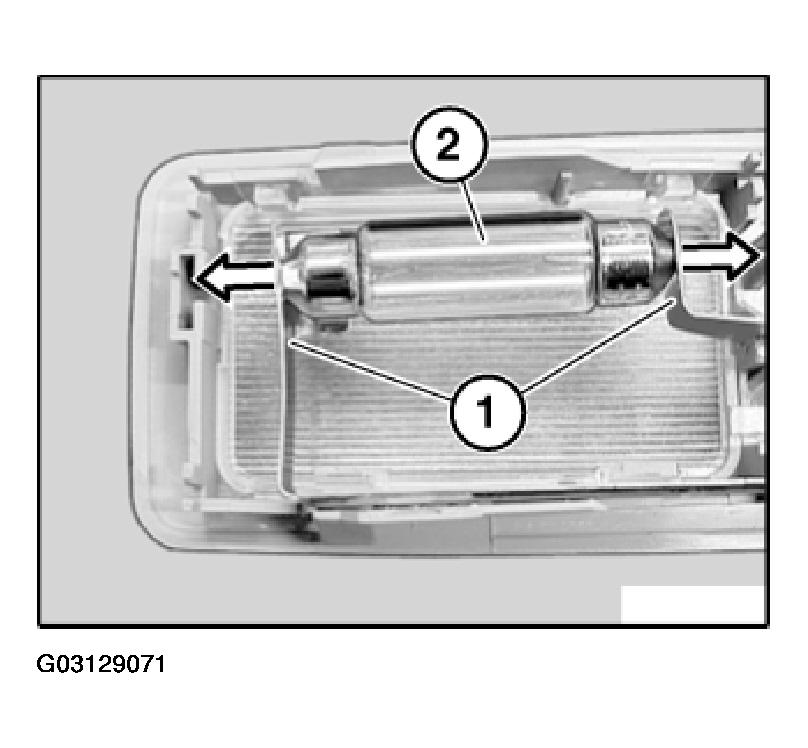

Fig 1: Removing Bulb For Mirror Light
G03129071Courtesy of BMW OF NORTH AMERICA, INC.
