63 99 435 Replacing bulb(s) for left or right interior light

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (interior lights).

All:

Remove interior light.

Saloon/sedan only:

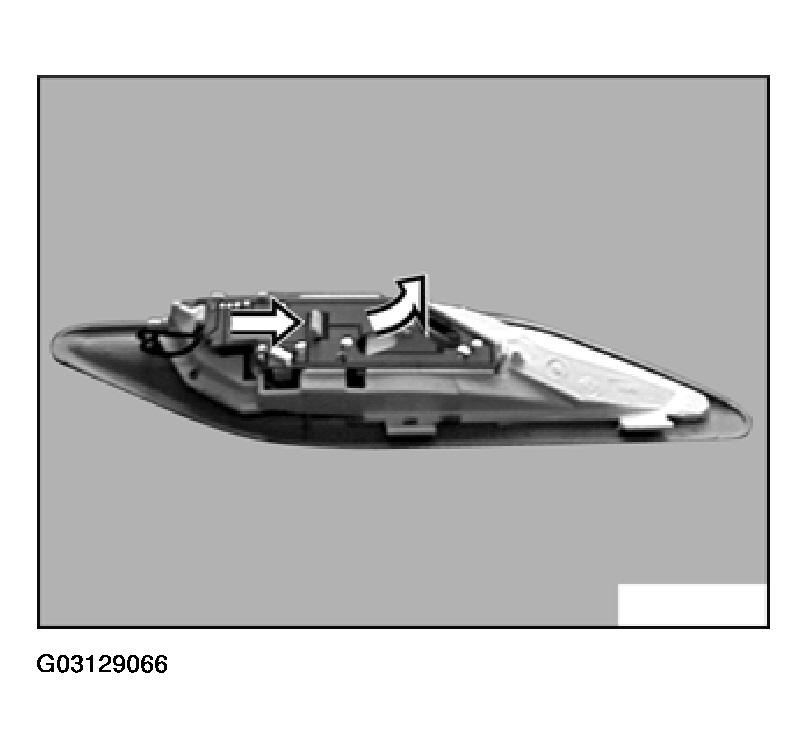

Press detent lug to one side and lever out base plate.

Fig 1: Levering Out Base Plate

Courtesy of BMW OF NORTH AMERICA, INC.

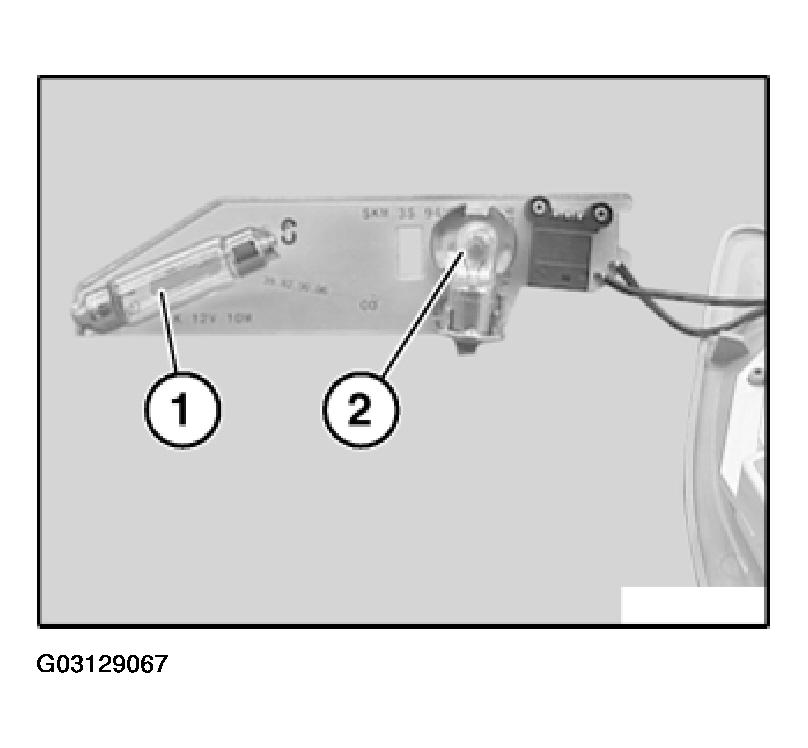

Remove bulb(s).

NOTE:

Bulb, interior light (side)
Bulb, interior reading light (rear)

Fig 2: Removing Interior Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

touring only:

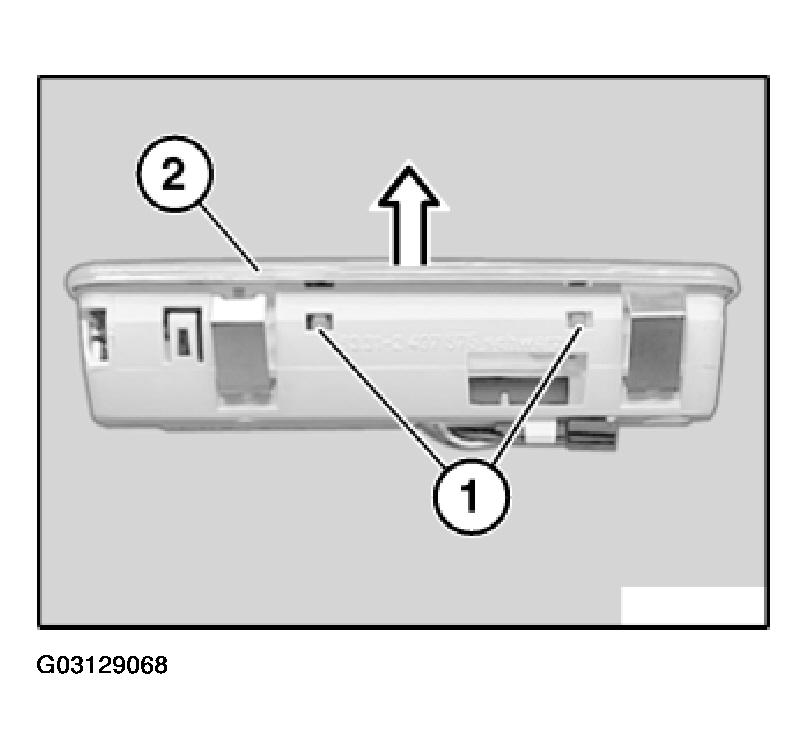

Press detent lugs (1) and clip out lens (2) in direction of arrow.

Fig 3: Pressing Detent Lugs & Clip Out Lens

Courtesy of BMW OF NORTH AMERICA, INC.

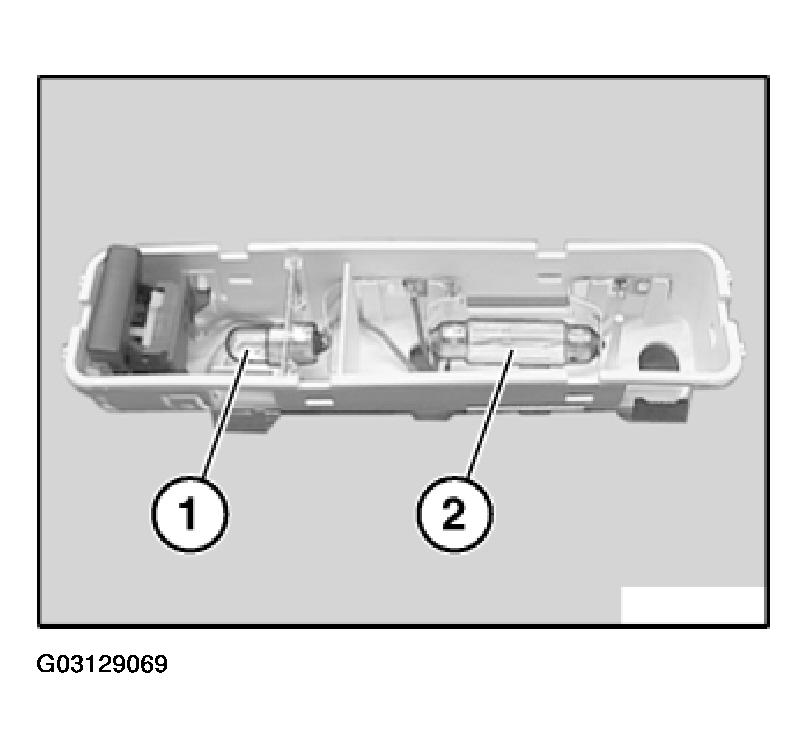

Remove bulb(s).

NOTE:

Bulb, interior reading light (rear)
Bulb, interior light (side)

All:

Installation:

Note type of bulb.

Fig 4: Removing Interior Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
