63 99 431 Replace light bulb for interior light

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip lens/reflector.

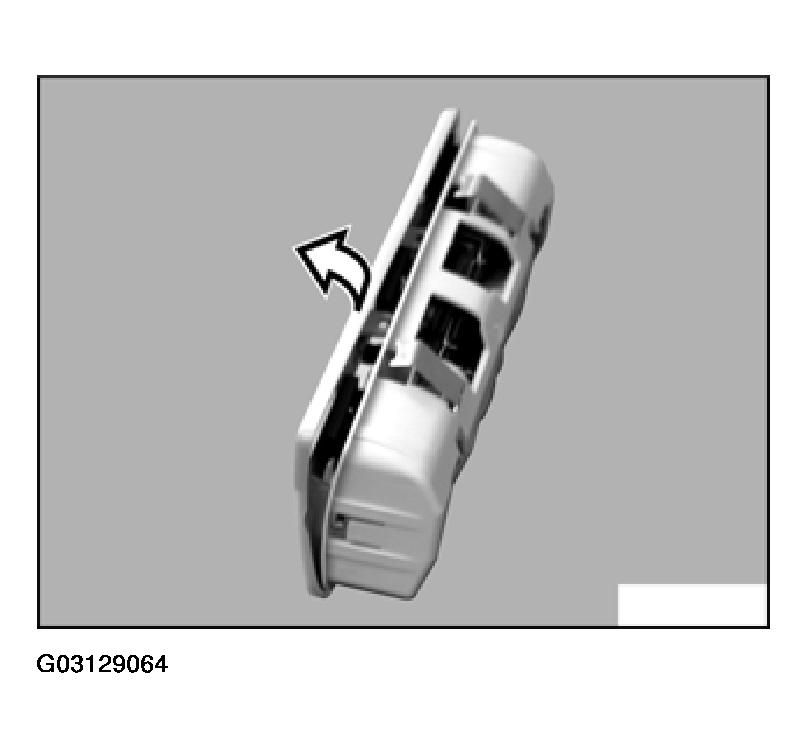

Fig 1: Unclipping Lens/Reflector
G03129064Courtesy of BMW OF NORTH AMERICA, INC.

Lift out light bulb.

CAUTION: Do not take hold of glass part of bulb with bare fingers.
Only take hold of bulb on base or with a clean cloth or packaging of light bulb.
Note type of bulb
.

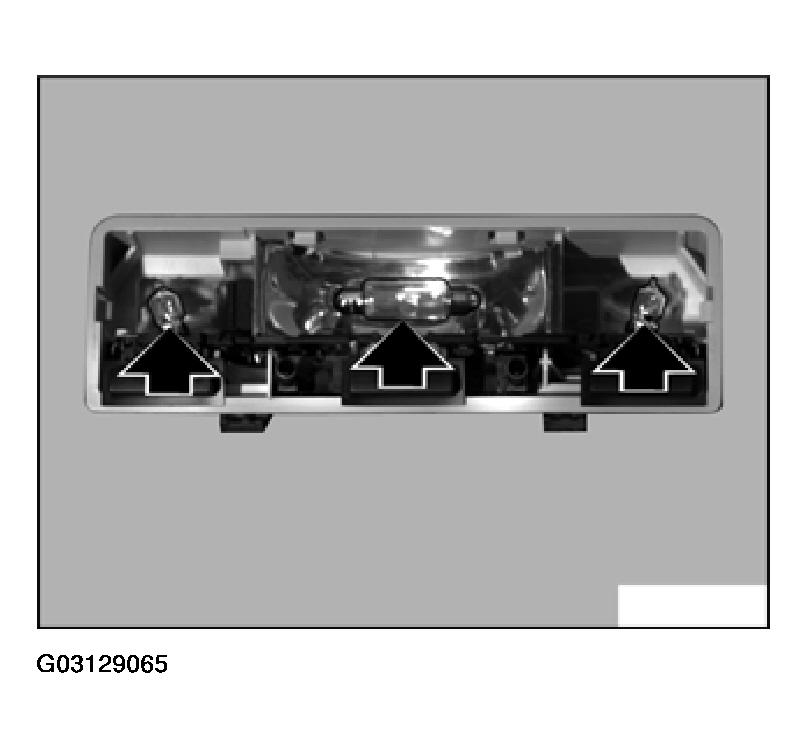

Fig 2: Lifting Out Light Bulb
G03129065Courtesy of BMW OF NORTH AMERICA, INC.
